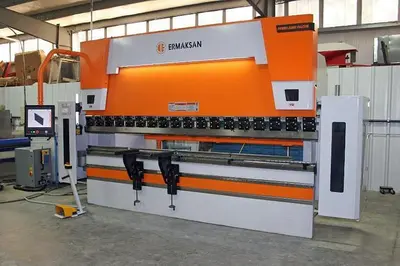

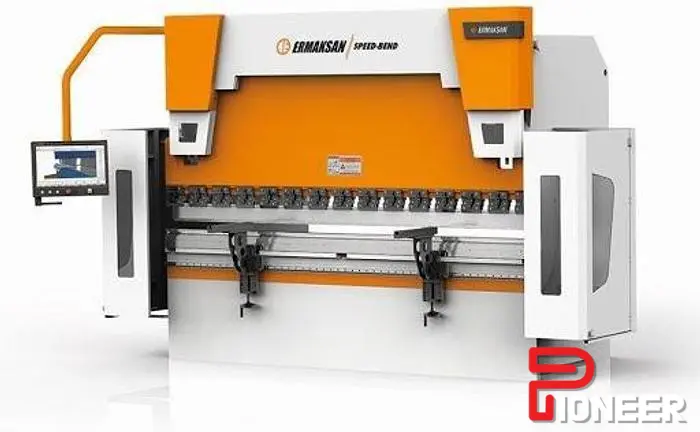

ERMAKSAN Falcon-Bend 8.5' x 110Ton w/ Delem 58T Controller

EVO-3 8.5 x 110 - TECHNICAL FEATURES
BENDING LENGTH - 102.4”
MAX. POWER - 110 US TONS
MAX. BENDING CAPACITY (59748 psi) - 0.2”
MAX. BENDING CAPACITY (81087 psi) - 0.16”
MAX. BENDING CAPACITY (89622 psi) - 0.16”
AXIS NUMBER OF MACHINE - Y1, Y2, X, R, Z1, Z2
FREE DOWN SPEED - 7.9 IN/S
BENDING SPEED - 0.47 IN/S
RETURN BACK SPEED - 7.48 IN/S
STROKE ( C ) (Y1, Y2) - 10.8”
BACK GAUGE STROKE (X AXIS) - 31.5”
BACK GAUGE STROKE (R AXIS) - 9.8”
DISTANCE BETWEEN HOUSING (B) - 86.6”
CROWING - MOTORIZED
THROAT DEPTH (E) - 16.1”
TABLE HEIGHT (F) - 35.4”
TABLE WIDTH (G) - 3.54”
DAYLIGHT (D) - 20.8”
PLANT VOLTAGE - 460V
IP - 54
MAIN MOTOR - 2 x 6.4 HP
BACK GAUGE MOTORS (X,R) 3.18+2.39 Nm
PLANT TEMPERATURE - 0-50 oC
MAX. NOISE - 63 dB
OIL CAPACITY 2 x 6.6 US GALLONS
MAX. PRESSURE - 3625 psi
MACHINE LENGTH (L) - 147.6
MACHINE WIDTH (W) - 76.8
MACHINE HEIGHT (H) - 110.3
WEIGHT - 15435 lbs

*WORKING SPEED MUST BE MAX. 10 mm / sec. AT CE
CERTIFIED MACHINES ACCORDING TO THE EN12622 NORM.
