ERMAKSAN Falcon-Bend 12’ x 192Ton w/ Delem 58T Controller
Unavailable

ERMAKSAN Falcon-Bend 12’ x 192Ton w/ Delem 58T Controller

Press Brakes
Manufacturer:
ERMAKSAN
Model:
FALCON BEND 12' x 192
Condition:
New - In-Stock
Stock #:
NM-10795-144
Serial #:
31211
The ERMAKSAN Falcon-Bend 12’ x 192Ton Press Brake with Delem 58T Controller. New condition with a capacity of 193 US tons, 4-axis control, 10.8" stroke, and 16.1" throat depth. Equipped with a motorized crowning system and advanced safety features.
Tonnage193 T175.087 t
Overall Length148'45.1 m
Between Housings141'43 m
Stroke10"254 mm
# Axis44
ControlCNC (Delem 58T)CNC (Delem 58T)
DimensionsL192 X W84 X H110L192 X W84 X H110
Weight2414524145

BENDING LENGTH ( A ) 144"
Tonnage 193 US Tons
MAX.BENDING CAPACITY (59748 psi) 0.20 " V=1.96"
AXIS NUMBER OF MACHINE Y1,Y2,X,R
BENDING SPEED 7.09 in/s
RETURN BACK SPEED 6.1 in/s
STROKE ( C ) ( Y1 , Y2 ) 10.8 "
BACK GAUGE STROKE ( X AXIS ) 31.5 "
BACK GAUGE STROKE ( R AXIS ) 9.8 "
DISTANCE BETWEEN HOUSING ( B ) 128 "
THROAT DEPTH ( E ) 16.1 "
TABLE HEIGHT ( F ) 35.4 "
TABLE WIDTH ( G ) 3.5 "
DAYLIGHT ( D ) 20.9 "
PLANT VOLTAGE 380 V IP 54 -
OIL CAPACITY 52.8 US Gallons
MAX. PRESSURE 3555 psi
MACHINE LENGTH ( L ) 192,9"
MACHINE WIDTH ( W ) 84.6 "
MACHINE HEIGHT ( H ) 110,2 "
Weight 22284 lbs

Falcon Bend 3760x175TN (148’ - 192)
DELEM DA-58, TOUCH SCREEN CNC CONTROLLER
TOTAL OF 4 AXIS (Y1,Y2, X, R) X:800 MM, R=250MM
ERMAKSAN TWO AXIS back gauge (X:800MM, R=250MM)
AMERICAN PROMECAM QUICK RELEASE
ROLLERI TOP TOOL ROLLERI - 0813/011/11
4 V DIE BOTTOM TOOL
10.8" HIGH STROKE
16.1" THROAT DEPTH
MOTORIZED CROWNING SYSTEM
230 or 460 VOLTAGE, 3PH, 60HZ
REAR GUARD
SIDE GUARDS WITH SWITCH
DOUBLE FOOT PEDAL CONTROLLER
HOERBIGER HYDRAULIC SYSTEM
SIEMENS ELECTRIC SYSTEM
SLIDING FRONT SUPPORT ARMS
STANDARD NARROW TABLE

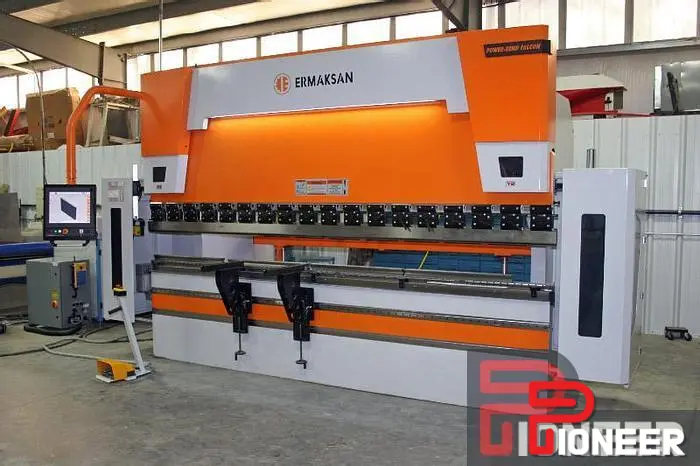

The machines in the picture are for reference only.
