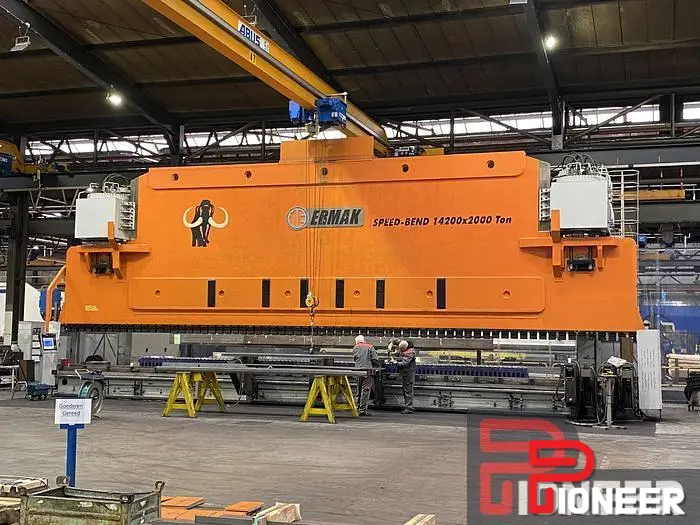

2013 ERMAKSAN Speedbend 14200-200 ton 47'x2200 ton

Description

Speed bend PRO 47' 2200 Ton
Delem Controller 66T
Ermaksan tooling
CNC Crowning
CNC back gauge
Factory decommission and install
Under power for inspection

BENDING LENGTH ( A ) 14200 mm
MAX. POWER 2000 ton
MAX.BENDING CAPACITY (42 kgf/mm 2) 25 mm V= 280 mm

MAX.BENDING CAPACITY (52 kgf/mm 2) 23 mm V= 280 mm

MAX.BENDING CAPACITY (57 kgf/mm 2) 22 mm V= 280 mm

MAX.BENDING CAPACITY (63 kgf/mm 2) 21 mm V= 280 mm

MAX.BENDING CAPACITY (70 kgf/mm 2) 19 mm V= 280 mm

AXIS NUMBER OF MACHINE Y1,Y2,X1,X2,R1,R2,Z1,Z2 -
FREE DOWN SPEED 70 mm/s
BENDING SPEED 6,2 mm/s
RETURN BACK SPEED 42 mm/s
STROKE ( C ) ( Y1 , Y2 ) 610 mm
BACK GAUGE STROKE ( X AXIS ) 1000 mm
BACK GAUGE STROKE ( R AXIS ) 250 mm
DISTANCE BETWEEN HOUSING ( B ) 11500 mm
CROWNING HYDRAULIC -
THROAT DEPTH ( E ) 1000 mm
TABLE HEIGHT ( F ) 800 mm
TABLE WIDTH ( G ) 500 mm
DAYLIGHT ( D ) 1000 mm
PLANT VOLTAGE 380 V
IP 54 -
MAIN MOTOR 2x75 kW
BACK GAUGE MOTORS (X1,X2,R1,R2,Z1,Z2) 2x7,2+4x4,78 Nm
PLANT TEMPERATURE 0-50 oC
MAX. NOISE 70 dB
OIL CAPACITY 2x1500 lt
MAX. PRESSURE 200 bar
MACHINE LENGTH ( L ) 15700 mm
MACHINE WIDTH ( W ) 4800 mm
MACHINE HEIGHT ( H ) 6200 mm
PART OF MACHINE UNDERGROUND ( N ) 2315 mm
DEPTH ( T ) 1155 mm
WEIGHT 387428
