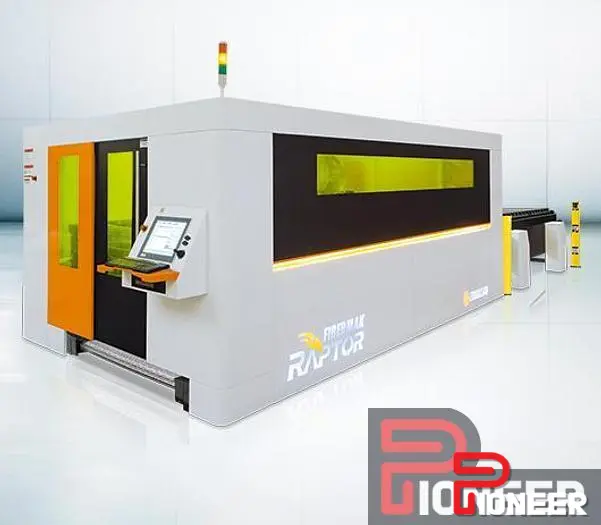

ERMAKSAN Raptor 5’ x 10’ 2kW

Laser Cutters
Manufacturer:
ERMAKSAN
Model:
FIBERMAK RAPTOR 5’ x 10’ 2kW
Condition:
New - In-Stock
Stock #:
1678683
RAPTOR Fiber Laser Cutting machine is an alternative solution without any concession from cutting quality with its less space requirements, and modular and ergonomic design compared to standard Fibermak. The raptor offers top-of-the-line cut quality at a lower cost. General Features: Modular and ergonomic design Designed as 0.5 G acceleration and 50 m/min. speed Extraction Unit Conveyor Loading Unit 15” touchscreen controller Servo motor technology High-precision cutting head Standard 500 W and 1 kW laser unit CUTTING HEAD FEATURES Manual adjustable focal lens Precise height control Protection Glass Piercing air system 1 year warranty, Factory install, Trainin, and dust collection included.
Sheet-W60"1,524 mm
Sheet-L120"3,048 mm
Wattage2000 w2,000 W
IPM2800 ipm
ControlCNC (BECKHOFF)CNC (BECKHOFF)
Dimensions106"(W) x 87"(H) x 343"(L)106"(W) x 87"(H) x 343"(L)
Weight1800018000

Table Size 5'x10'
Wattage 2,000 Watt IPG
Cuttiing Capacity Mild steel 3/4"
Cutting Capacity Stainless Steel 3/8"
Cutting Capacity Aluminum 5/16"
Cutting Capacity Brass 3/16"
Cutting Capacity Copper 3/16"
POSITIONING ACCURACY ± 0,004 Inch
REPETITION ACCURACY ± 0,002 Inch
CUTTING HEAD Precitec Procutter
CAD/CAM SOFTWARE LANTEK EXPERT CUT
