MSIW60D IRONWORKER
SPECIFICATIONS & FEATURES
Capacities & Specifications Rated on 65,000 PSI Tensile
PUNCHING
Punch Pressure 60 tons
Punch Holder and Jog Mode
Punch Work Table Includes back gauge and adjustable stops
Adjustable See-Through Punch for fast and easy setup
Die Holder Adjustable in machined T-slots for quick punch and die alignment
Standard Tooling 1 1/2” in ½” material
CPD Series 26 punch, 62 die
Large Tooling 2” in 3/8
CPD Series SP51P punch, SP80D die
Optional Oversize Tooling 4” in 3/16” material
Throat Depth 10”
Stroke Length 2-5/16”
Cycles per Minute in 3/4” 25
Punching Station Work Height 40 7/8”
BAR SHEARING
Round Bar Max. Capacity 1-1/2”
Square Bar Max. Capacity 1-1/2” x 1-1/2”
Six Cavity Round and Square Bar
Shear Sizes Round: 1/2”, 1”, 1-1/2” Square: 3/4”, 1-1/2”
Channel Shear Max. (optional) 4”
I-Beam Shear Max. (optional) 4”
Bar Shear Work Height 44-1/2”

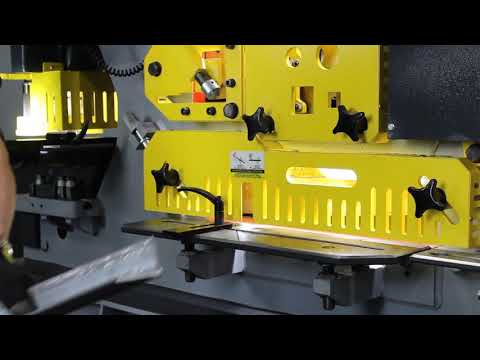

FLAT BAR SHEARING
Flat Bar Shear Capacity 12” in 1/2”
Maximum Width x Thickness 8” in 3/4”
Lower Blade Four (4) usable edges
Support Table Includes guides for accurate positioning and indicator lines at 90 & 45 degrees left & right
Adjustable Hold-Down High Visibility
Upper Shear Blade Provides for minimum distortion. Two (2) usable edges
Blade Length 12-1/2”
Angle Flange Trim 3”
Flat Bar Shear Work Height 35-3/4”
ANGLE SHEARING
Maximum Capacity – 90 degrees 4” x 4 x 3/8”
Maximum Capacity – 45 degrees 2-1/2” x 2-1/2 ” x 3/8”
Shearing with no material loss
and minimum deformity
Shear Blades Four (4) usable edges
Angle Shear Work Height 44-1/2”
NOTCHING
Rectangular Notcher 1-3/4” x 3-1/2” x 3/8”
Electrical Interlock Safety Guard
Gauge Table with Stops For precise positioning
Notcher Work Height 35-1/2”
OTHER STANDARD EQUIPMENT
Five (5) Sets of Punches and Dies Punches: 9/16”, 11/16”, 13/16”, 15/16”, 1-1/16”
Dies: 19/32”, 23/32”, 27/32”, 31/32”, 1-3/32”
CPD Series 26 punch, 62 die
Magnetic Base Work Light
Adjustable Electric Back Gauge (36”)
24 Volt DC Control Voltage
Scrap Boxes at Punching and Notching
Stations
Adjustable Stroke Depth at Punch
Two (2) Full-Control Foot Pedals
Two (2) Hole Die Holders
Two (2) Piece Gauging Table at Punch
Station
Keyed Punch Holder for Shaped Tooling
Standard Voltage 230 or 460 Volt, 3 Phase, 60Hz
Machine Net Weight 3350 lbs
Machine Dimensions 63 1/2” L x 35” W x 66” H
Electric Back Gauge 3’
