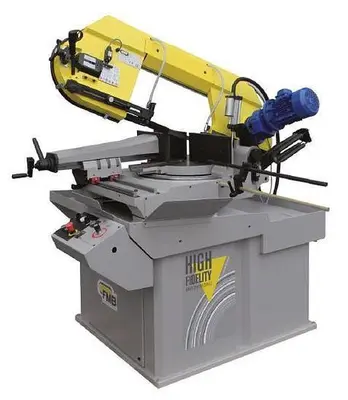

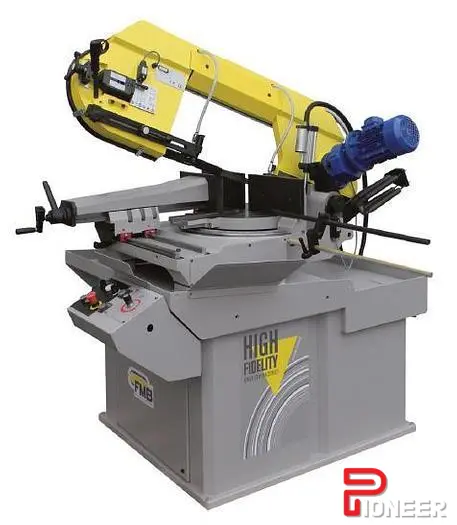

Saturn
The Saturn offers semi automatic operation of the cutting cycle, complete with hydraulic clamping, positive hydraulic cutting pressure and auto return after the cutting cycle.
Standard Features & Equipment:
Swivel saw head with a precision protractor. Mitre 0 – 45 degree left and 0-60 degree right,
Heavy duty machine base with locking cabinet
Mechanical blade tension with built in indicator
Precision carbide blade guides with roller guides
Length stop (23” long)
Saw drive via gear reductor with case hardened and ground helical gears
Flood coolant system
24 volt control voltage
Infinite Variable Speed Motor Controlled via OMRON INVERTER
Specify voltage at the time of order ( 220/3ph, 440/3ph)
One FMB cobalt band saw blade and operating manual
Vise Slides on Linear Guide Rails for easy setup of left and right mitre cuts
Round 0 Dgree 12"
Round 45 Degree/Right 10-1/4"
Round 60 Degree/Right 6-3/4"
Round 45 Degree/ Left 11"
Rectangle A 0Degree 12"x14-1/4"
REctangle A 45 Degree/Right 6"x10-1/4"
Rectangle A 60Degree/Right 10-1/2"x6"
Rectangle A 45 Degree/Left 6"x10-1/4"
Rectangle B 45 Degree/Right 12"x8-2/3"
Rectangle B 60 Degree/Right 6-1/4"x6-3/4"
Rectangle B 45 Degree/Left 12"x9-3/4"
Square 12"x12"
Square 45 Degreee/Right 9-1/2"x9-1/2"
Square 60 Degree/Right 6-1/4"x6-1/4"
Square 45 Degree/ Left 10"x10"
Blade Size 11'3"x1"x.035
Saw Blade Speed Variable 52 to 394 FPM
Saw Motor 2 HP
Coolant Motor 1/8 HP
Floor Space 38"x63"
Machine Weight 2180 LBS
