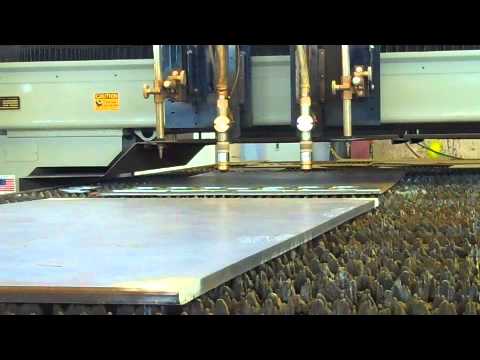

MODEL HG16 MACHINE GANTRY
• BEAM ASSEMBLY
Allows Table Widths From 6' 8" (80") to 17' 8" (212")
Fabricated and Machined In-House to Strict Tolerance Requirements
Constructed From 12" by 12" Steel Tube, 1/2" Wall Thickness
Dual Linear Ways That Are Plated and Have Cap Seals to Prevent Dirt Incursion
• DECK ASSEMBLY
Provides a Rugged Surface to Hold Critical Machine and Process Components
Aids the Machine Beam in Providing Structure for the Machine
• STANDARD TRUCK ASSEMBLY
Houses Hardened Steel Wheels (8" Diameter), Motor Assembly, and Guide Bearings
Features Rail & Wheel Scrapers to Help Maintain the Rails While the Machine is in Motion
Air Blast Nozzles Located on Each End Help Keep Debris Off of the Rails
Available in Standard or Tucked Designs of Different Heights
• OPERATOR'S STATION BRACKET
Provides Several Options and Locations for Attaching the Operator's Console to the Machine
• MACHINE INPUT/OUTPUT CABINET
I/O Module is Digitally Linked to the CNC for Better Noise Immunity, Faster Response Times,
and a Lowered Number of Electrical Connections To Help Reduce Potential Failure Points
Temperature Controlled Via Heat Exchanger or Air Conditioner
Designed with Future Expansion Capabilities for Fast Response to Changing Needs
• AC BRUSHLESS SERVO DRIVE SYSTEM
High-Precision Bosch-Rexroth® Indramat Series Servo Drive System
600 Inches Per Minute Maximum Traverse Speed (Standard)
Higher Traverse Speeds Available Upon Request - May Require Additional Safety Devices
• COMPRESSED AIR FILTER KIT
Includes: Particulate Filter, Water Separator and Oil Mist Separator
• MACHINE POWER DISCONNECT & TRANSFORMER
Power Required: 480VAC, Three-Phase, 22 Amps
