EDWARDS 75 Ton Ironworker
Have one to sell?
ConditionNew
New

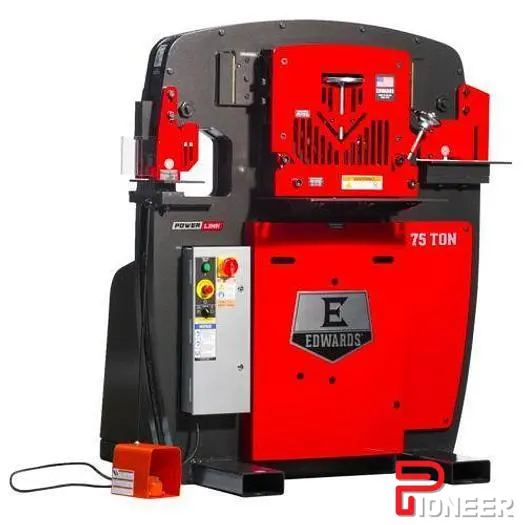

Edwards 75 Ton Ironworker
FLEXIBILITY
• Four workstations: – Standard (4) – Punch, Flat Bar Shear, Angle Shear & Coper Notcher
• 12 interchangeable Attachments available to tailor the Ironworker to your needs
• 17 optional Accessories available to increase precision and efficiency
PRODUCTIVITY
• Compact machine that allows for fast and easy transitions between fabrication operations: punch, shear, notch, bend and cope all in one machine.
• Optimized workstation heights for improved efficiency • Electric foot pedal with integrated jog control
• Adjustable electric stoke control
SAFETY
• Bright LED lights increase visibility
• ANSI B11.5-1988(02) Compliant Guarding
• ETL Certified Controls
• Integrated Lock-out/Tag-out system with E-Stop for added safety
PERFORMANCE
• Durable, heavy-duty, Made In USA steel construction
• Vertical movement produces even pressure resulting in precise punching and shearing with minimal distortion that results in extended tooling life
• Punches are easily changeable, long-lasting and available from 1/8” to 4” diameters along with square, oblong, hex, metric, and custom shapes
• Flat Bar Shear blades are made of precision machined, high-quality tool steel with 4 cutting edges for extended life
• Angle Shear blades have 2 corner radii for both thin and thick material and are made of precision tool steel with 2 cutting edges for extended life
Punch Rating (tons 75
Punch Max Capacity (In.) 1-1/16 diam. in 7/8 mild steel
Punch Work Height (In.) 39-1/16
Punch Throat Depth (In.) 10
Punch Stroke (In.) 1-13/16
Flat Bar Shear Max Capacity (In.) 1/2 x 14 3/4 x 10
Flat Bar Shear Work Height (In.) 37
Flat Bar Shear Max Round Capacity (In.) 1 diam.
Flat Bar Shear Max Square Capacity (In.) 1
Angle Shear Max Capacity (In.) 5 x 5 x 1/2
Angle Shear Work Height (In.) 43-15/16
Coper Notcher Max Capacity (In.) 2-1/2 x 5 x 1/2
Coper Notcher Work Height (In.) 42
Motor 5 or 7.5
Amps 23
Hydraulics (GPM) 10-1/2
Hydraulics (PSI) 3500
Hydraulic Reservoir (gal.) 17
Product Dimensions (In.) 45 x 50 x 60 1/4
Shipping Dimensions (In.) 46 x 69 x 63
Weight (lbs.) 4,100
