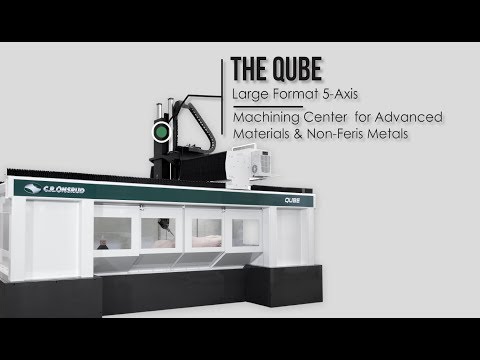

The Qube is a fully enclosed CNC machining solution that gives users a large work volume for machining molds, prototypes, and complex composite or thermoformed plastic parts while containing debris and isolating the operator from the machining zone and airborne particles. The design of this CNC machining center allows for various methods of work holding such as mechanical hold down and vacuum. Accommodation for oversized parts is achieved via removable side panels.
developed for companies seeking 5-axis high-speed trimming and machining of advanced materials used in the aerospace, automotive, defense, marine, and pattern shop industries
Additional Features
4-Pole, reversible, 24,000 RPM high torque spindle
HSK-63F spindle taper and tool holders, with 1 inch (25mm) collet capacity
Over 48 inches of Z-Axis Clearance & 40 inches of Z-Axis stroke standard
Finite element analysis used extensively in the engineering process
Thermal heat-treated, stress relieved, & normalized one-piece steel machine base
Open table design can be configured with dedicated fixtures, vacuum tables, or T-Slot tables
Compact design saves valuable shop floor space
Wide retractable enclosure doors to contain debris but allow easy access
Fanuc CNC Controller with Integrated Touch Screen HMI
Easy Network Integration
Full 3D capability, helical interpolation, and simultaneous 5-Axis motion standard
And many more options or accessories
Number of Axes 5
Table Size 60” X 144”
Z Clearance 39"
X-Axis Travel 160”
Y-Axis Travel 63”
Z-Axis Travel 41"
Approx. Footprint 22' X 12'
Machining Speed 2000 ipm
X & Y Rapid Traverse 2000 ipm
Standard Spindle 12HP 20,000 rpm
Tool Shank HSK 63F
Standard Tool Capacity 6
Standard Vacuum Zones 2
