New
SALVAGNINI P4LEAN-2516
Panel Benders

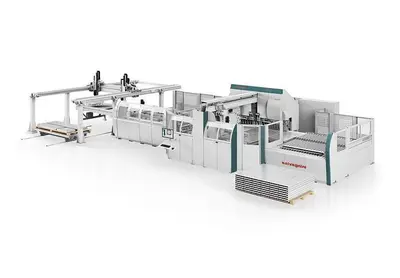

P4 AUTOMATIC PANEL BENDER
Welcome to factory 4.0. The P4 was invented and designed by Guido Salvagnini in 1977 and has continuously been developed up to today. Salvagnini owns the largest factory for panel bending 4.0 worldwide.
FLEXIBLE: Universal tool for bending from 11 to 27 gage
PRODUCTIVE: Automatic set-up in masked time.
SMART: Zero scrap and consistent quality thanks to MAC 2.0
SIMPLE: Intuitive and easy programming software
REACTIVE: Extensive modularity to allow the machine working in factories 4.0
VERSATILE: Custom solution to cut profile or bend articulated parts
AVAILABLE: Wildest range of available models
| Bending Length | 2,795 mm |
Maximum length of incoming sheet (in) 110
Maximum width of incoming sheet (in) 60
Maximum diagonal that can be rotated (in) 110.2
Maximum bending force (kN) 660
Maximum clamping force (kN) 1060
Maximum bending length (in) 98.4
Maximum bending height (in) 6.5
Minimum thickness (gage) 25
Maximum thickness and bending angle steel, UTS 410 N/mm2 (gage)
11 (±90°) / 13 (±120°) / 14 (±135°)
Maximum thickness and bending angle stainless steel, UTS 660 N/mm2 (gage)
13 (±90°) / 14 (±125°) / 16 (±135°)
Maximum thickness and bending angle aluminium, UTS 265 N/mm2 (gage)
7 (±120°) / 8 (±130°) / 9 (±135°)
