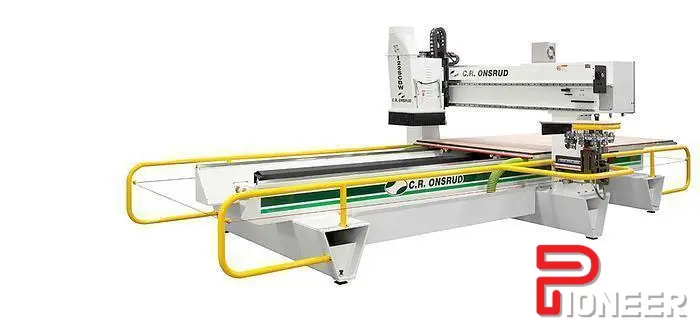

The S-Series CNC machines are engineered and built for production applications requiring the fixed bridge performance of our popular Super Duty Series, but which are better served by the table moving long-ways under the bridge. This makes our S-Series the alternative configuration, sharing almost all of the major components: control, spindle, electronics, mechanical linear motion systems, tool changer, and even many of the available options. Thus, they are both very comparably priced, and offer very similar performance and value. What differentiates the S-Series from its Super Duty Series sibling is not in its parts or components, but the table configuration. The S-Series design moves a single table in the longer direction, therefore the bridge need only span the shorter dimension across the width of the table which produces greater rigidity for improved accuracy. More floor space is required, however, in order to facilitate materials handling, which provides the advantage of increased operator access to all sides of the table for some applications and products. Unobstructed table access makes loading and unloading of large work–pieces or tooling more convenient, thus allowing for the easy integration of material handling systems, transfer tables, and other automation alternatives. The S Series CNC router from C.R. Onsrud is a reliable fixed bridge workhorse with applications inherent to its well-thought-out design.
Single Aluminum Moving Table Design for Loading and Unloading Efficeincy
Compact Design Saves Valuable Shop Floor Space
Intelligent Design Allows for Easy and Loading and Unloading
Efficient and Effective Integrated Dust Tranistion that Only Requires a 8 inch Dust Hose
C.R. Onsrud High-Flow Universal Vacuum Table System with Low Vacuum Sensing
Independently Controlled Vacuum Zones
Comes Equiped with Choice of Flow Through or Dedicated Spoil Board
FANUC, OSAI, and B&R control options
4-Port Ethernet Connection, USB, and Serial Connectivity, for Easy Network Integration
Full 3D capability with Helical Interpolation
Number of Axes 3/4
Table Size 144” X 60”
Z Clearance 14”
X-Axis Travel 146”
Y-Axis Travel 72”
Z-Axis Travel 11”
Approx. Footprint 10’ X 26'
Machining Speed 3000 ipm
X & Y Rapid Traverse 4800 ipm
Standard Spindle 18HP 24,000 rpm
Tool Shank HSK 63F
Standard Tool Capacity 12
Standard Vacuum Zones 2
