CORNERWELD 500-HH-42-80
Have one to sell?
ConditionNew
New

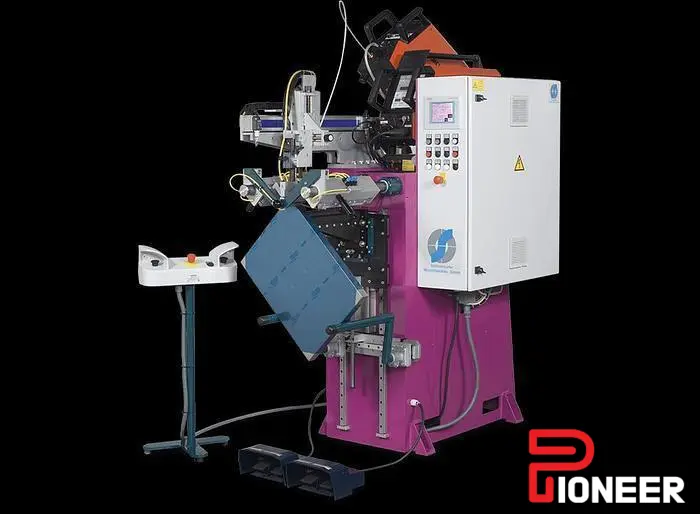

CORNERWELD corner welding machines have been developed to weld sheet metal plates in 90° joints. Precise clamping technology with cooling system and inert gas supply combined with a convenient machine control to control welding cycles ensure high-quality corner welding seams.
The highly flexible clamping system is designed to clamp and weld diverse part geometries on one unit.
The maximum welding length is 300 mm or 500 mm depending on the machine model. The maximum inward return flange is 42 mm. Moreover, workpieces with max. 80 mm outward return flanges can be clamped.
Common applications for corner seam welding include control cabinets made of steel and stainless steel, catering kitchens as well as sanitary and laboratory furniture. CORNERWELD corner seam welding machines are also suitable for welding of larger rectangular tanks, such as ultrasonic cleaning tanks.
Welding length up to
500 mm
Component dimensions min.
more information in our data-sheet
Component dimensions max.
more information in our data-sheet
Clamping height above ground
1220 mm
Material Type
Stainless Steel, Mild Steel, Galvanised Steel, Aluminium
Material Thickness
0,4 mm – 3,0 mm
Inward return flange max.
42 mm
Outward return flange max.
80 mm
Internal clamping Tool
Hard Wearing Copper (CuCrZr), Stainless steel (Option)
Clamping Finger
Hard Wearing Copper (CuCrZr), Stainless steel (Option)
Clamping System
Pneumatic, Pre-clamp feature
Arc Length
Constant (over whole welding length)
Welding process
TIG
Welding direction
free selectable
Gas
Torch Gas, Backing Gas, Trailing Gas
Cooling Circuit
Mandrel (Internal clamping tool), Torch
Control
Siemens S7-ET 200S
Operator Panel
Siemens Comfort-Panel 7,0ʺ TFT colour display, touch operation
Motor
Siemens Simodrive Posmo
Welding Interface
Roboterinterface, Profibus
Standard
CE-Mark
or
UL-Standard
(Option)
Electric Supply/ Input
400/230 Volt / 3 / N / PE; 50/60 Hz; TN-grid
Air Supply
6 bar, dry, filtered
Ambient Temperature
+ 10°C to + 35°C
Colour
RAL 4006 / 7015 or to customer requirements
Dimensions (W x L x H)
800 mm x 1400 mm x 1800 mm
Weight
980 kg
