4 ROLL PLATE ROLL VBH 2600/16
Have one to sell?
ConditionNew
1 available
New

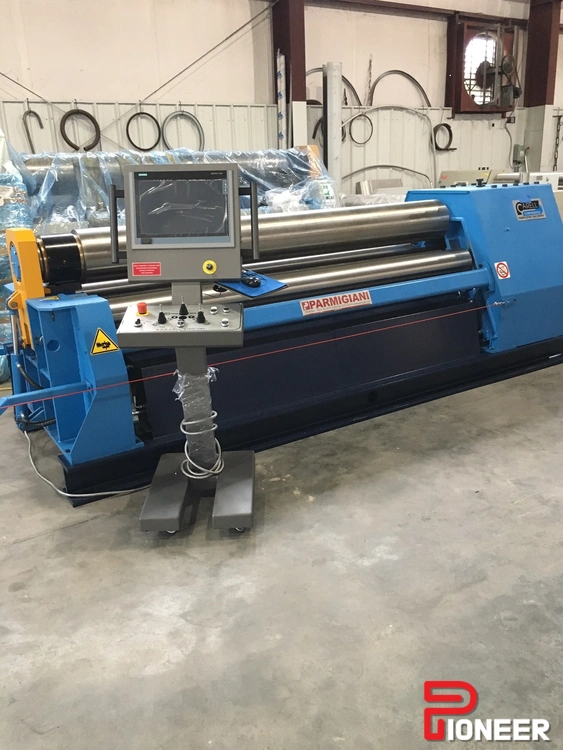

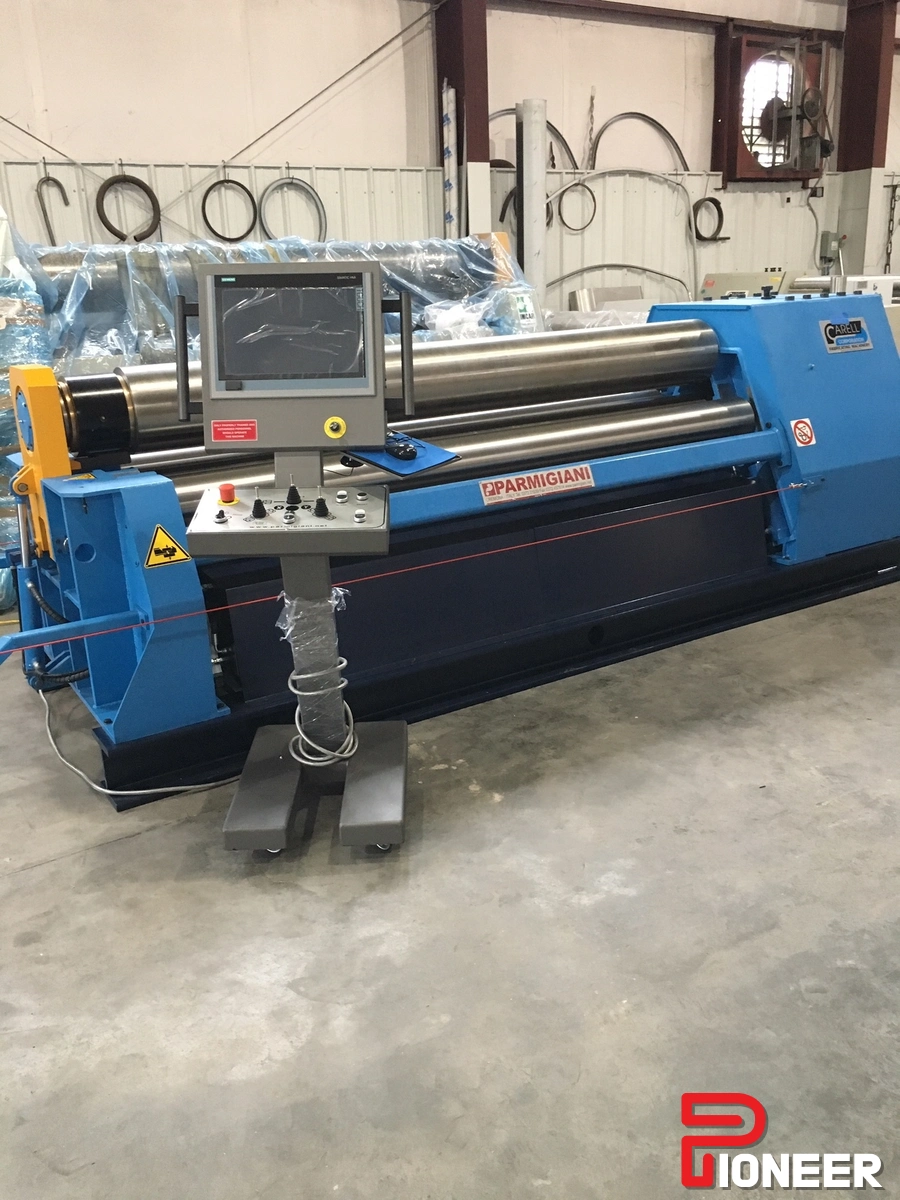

2022 Parmigiani 4 Roll
VBH 2600/ 16 Hydrotronic
New machine in stock ready for quick deliver
Top roll diameter (reduced deflection using our AVG technology) 290mm 11.42”
Pinch roll diameter 10.63”
Side bending roll diameters 7.87”
Useful width of rolls (widest sheet the machine will accept) 8’
Min. rolling ID possible with M.S. S-235 with 11.42” OD top roll 13.5”
Main supply Voltage (other voltages available upon request) Volt-Hz 480-60
Total power driving the hydraulic pumps (Energy Saving) at 480V-60 Hz HP 24.00
Approximate dimensions: L x W x Ht 14.5’ x 4.27’ x 4.1’
Approximate maximum weight LBS 16,000
Material S-235
Capacity for carbon steel type S-235 with tensile strength up to 60 KSI and Yield point up to 36 KSI
• For internal bending diameter Ø 57” (approximately 5 times top roll diameter)
Max. rolling thickness for plate width L = 8’ 5/8” mm. 16 0.630”
Max. pre-bending thickness for plate width L = 8’ 1/2” mm. 12.4 0.500”
• For internal bending diameter Ø 16” (approximately 1.4 times top roll diameter)
Max. pre-bending thickness for plate width L = 8’ 3/8” mm. 10 0.394”
Material S-355
Capacity for carbon steel type S-355 with tensile strength up to 80 KSI and Yield point up to 51 KSI
• For internal bending diameter Ø 57” (approximately 5 times top roll diameter)
Max. rolling thickness for plate width L = 8’ 1/2” mm. 13 0.512”
Max. pre-bending thickness for plate width L = 8’ 3/8” mm. 10 0.394”
• For internal bending diameter Ø 16” (approximately 1.4 times top roll diameter)
Max. pre-bending thickness for plate width L = 8’ 5/16” mm. 8 0.315”
• Cone Rolling Capacity (continuous rolling) approximately 75% of pre-bending capacity
4 ROLL PLATE ROLL VBH 2600/16 Hydrotronic (VBH 8-290)
Stradivari CNC Control
7” full-color display, touch-screen to program roll stroke positions.
“STRADIVARI” with 3-D ROLLCAD
Hardened Rolls
Cone Device & Pre-Dispositioned Future addition of 2 sides support
Overhead Support
