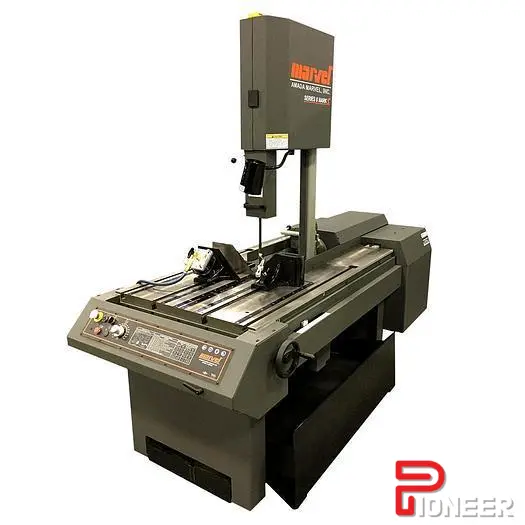

8-MARK-II

Condition New
Capacity: 90° 18″ x 22″
Capacity: 45° 18″ x 12.75″
Speed range 50-450 fpm infinitely variable speed drive system.
Front-mounted speed control Allows blade speed to be adjusted from operator’s control station.
Feed range 0 – 140 lbs. infinitely variable direct reading scale balance beam.
T-slotted work table Work area 24.25″ x 33″; table height 34.5″; four machined T-slots accept .625″ (15.5 mm) T-Bolts.
Miter cutting Column and blade tilt up to 45° right and left of vertical; work always stationary. Built in protractor.
Quick-action vise Maximum opening 18″. Jaws can be shifted to either right or left side of blade. Jaws are 6″ high, 12″ wide.
Automatic stops Adjustable stops can be pre-set to stop advance and return of blade and to stop motor at any location within the 18″ travel of the blade.
Coolant system Built in with Flood system, available with added optional drop lubrication system. Controlled by on-off selector switch at operator’s station. Tank capacity 21 gallons.
Flushing hose Washes chips from hard-to-get-at places reducing clean-up time.
Power chip brush Together with blade wipers and flood coolant keep blade teeth free of chips.
Carbide guide system Guides are stationary and can be rotated to present new guiding surface to the blade. Upper and lower guides have preloaded carbide-faced back-up blocks to support back edge of the blade.
Blade 14′ 6″ Long x 1″ Wide x .035″ Thick. One Welded-Edge Band Blade is furnished with each machine.
Motors Main; 5 H.P., 1800 RPM, totally enclosed fan cooled. Coolant Pump; 1/8 H.P. enclosed motor-built-in integrally.
