New

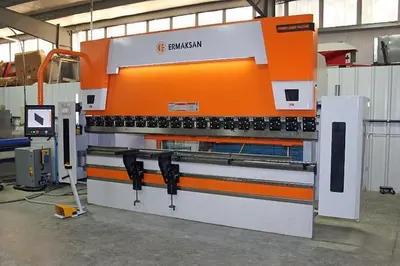

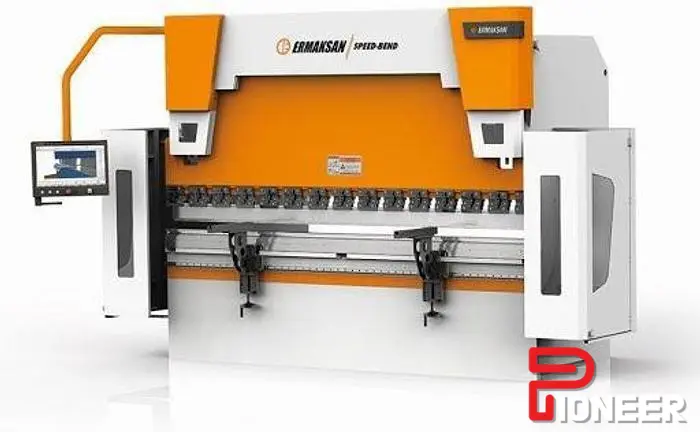

FALCON BEND 12'X242
Press Brakes
DELEM DA-58T CNC Controller
TOTAL OF 4 AXIS (Y1,Y2, X, R) X:800 MM, R=250MM
ERMAKSAN TWO AXIS BACKGAUGE (X:800MM, R=250MM)
AMERICAN PROMECAM QUICK RELEASE
ROLLERI TOP TOOL ROLLERI - 0813/011/11
4 V DIE BOTTOM TOOL
275 MM HIGH STROKE
410 MM THROAT DEPTH
MOTORIZED CROWNING SYSTEM
230 or 460 VOLTAGE, 3PH, 60HZ
REAR GUARD
SIDE GUARDS WITH SWITCH
DOUBLE FOOT PEDAL CONTROLLER
HOERBIGER HYDRAULIC SYSTEM
SIEMENS ELECTRIC SYSTEM
SLIDING FRONT SUPPORT ARMS
STANDARD NARROW TABLE
RAL 7035, RAL 2008 COLORS
ENGLISH LABEL
ENGLISH MANUAL
| Tonnage | 242 T |
| Type | HYD |
| Overall Length | 12.33' |
| Between Housings | 10.6' |
| Stroke | 10.83" |
| # Axis | 4 |
| Control | CNC (Delem 58T) |
| Dimensions | 200.8 " X 88.6 " X 66.9 " |
| Weight | 28,211.2 |
BENDING LENGTH ( A ) 148.0 "
MAX. POWER 242 US Tons
MAX.BENDING CAPACITY (59748 psi) 0.33 " V=3.14"
MAX.BENDING CAPACITY (81087 psi) 0.30 " V=3.14"
MAX.BENDING CAPACITY (89622 psi) 0.28 " V=3.14"
AXIS NUMBER OF MACHINE Y1,Y2,X,R -
FREE DOWN SPEED 7.1 in/s
BENDING SPEED 0.4 in/s
RETURN BACK SPEED 7.3 in/s
STROKE ( C ) ( Y1 , Y2 ) 10.8 "
BACK GAUGE STROKE ( X AXIS ) 31.5 "
BACK GAUGE STROKE ( R AXIS ) 9.8 "
DISTANCE BETWEEN HOUSING ( B ) 128.0 "
CROWNING MOTORIZED -
THROAT DEPTH ( E ) 16.1 "
TABLE HEIGHT ( F ) 35.4 "
TABLE WIDTH ( G ) 6.3 "
DAYLIGHT ( D ) 21.7 "
PLANT VOLTAGE 380 V
IP 54 -
MAIN MOTOR 24.79 HP
BACK GAUGE MOTORS (X ,R) 2,39+3,18 Nm
PLANT TEMPERATURE 0-50 oC
MAX. NOISE 70 dB
OIL CAPACITY 79.3 US Gallons
MAX. PRESSURE 4123.8 psi
MACHINE LENGTH ( L ) 200.8 "
MACHINE WIDTH ( W ) 88.6 "
MACHINE WIDTH (K) 66.9 "
MACHINE HEIGHT ( H ) 114.2 "
WEIGHT 28211.2 lbs
