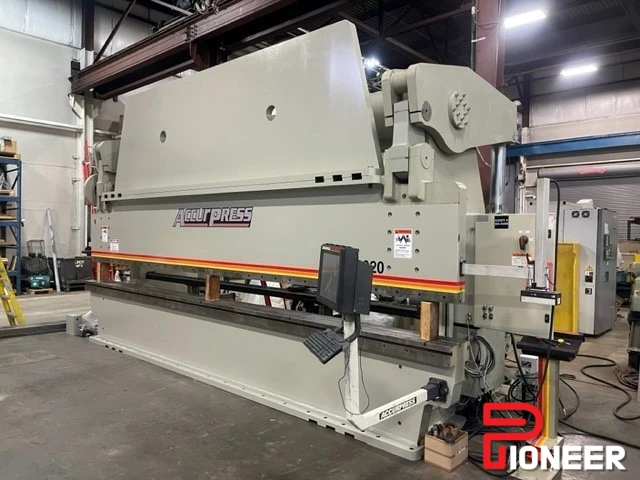

Model 760020, ETS3000 Control, Premium 5-Axis Backgauge, Wila CNC Crowning
Press Brakes
Includes ETS3000 Advantec CNC Control with X,Y,R,Z1-Z2 Axis,
Note: complete ETS3000 Advantec Upgrade with Premium Backgauge in 2015,
20' x 6" Wila CNC Crowning Die Rail with Manual Clamping,
Adj. Bend Speed Control,
Throat Depth Increased to 16" in lieu of 12",
Ram Open Height increased by 2",
(2) 36" HD Swing-Away Sheet Supports,
Remote Hydraulics with High Speed Package,
Extra Foot Switch,
T-Slot Machine Grove in Front and Back of bed,
Machine Groove in top of bed,
Lazersafe Guarding. Note: Safety Guarding/Light curtains sold as is & are not warrantied or guaranteed by Pioneer Machine Sales.
Requires pit in floor.
Price on request.
| Tonnage | 600 T |
| Type | HYD |
| Overall Length | 140' |
| Between Housings | 198' |
| Stroke | 12" |
| Control | CNC (ETS3000) |
| Dimensions | (L x W x H) 246" x 80" x 140" |
| Weight | 98,000 |
Type Hydraulic Press Brake
Price Price on request.
Model No. 760020
Capacity (Tons) 600
Bed Length 240"
Distance Between Frames 198"
Bed height 34"
Bed depth below floor 50"
Stroke 12"
Open Height 22"
Closed Height 10"
Throat 16" (includes 4" additional throat depth)
Overall Dimensions Approx. (L x W x H) 246" x 80" x 140"
Weight Approx. (Lbs.) 98,000
Electrics 460V/3-Ph
Serial No. Will Advise
Year 1999
