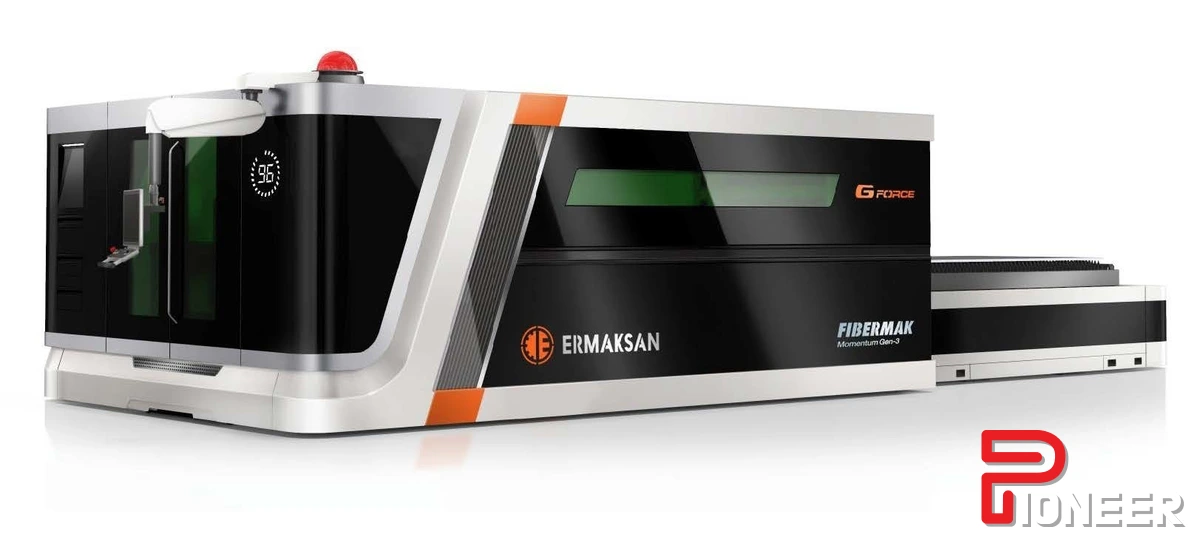

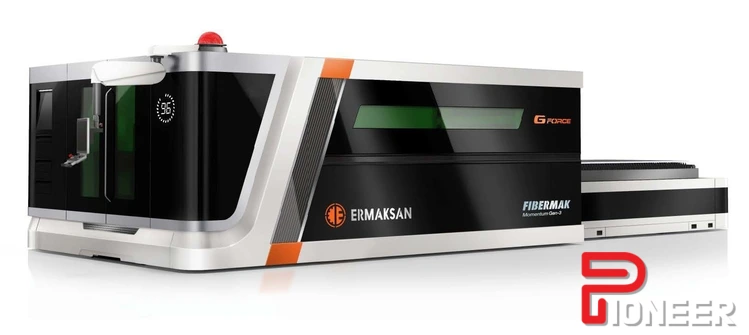

ERMAKSAN G Force 6' x 12' 8kW

MAXIMUM WORKSHEET DIMENSIONS: 157 x 79 inch
POSITIONING ACCURACY: ± 0,001 inch
REPETITION ACCURACY: ± 0,0006 inch
SHUTTLE TABLE (Automatic Loading - Unloading Unit): 2 (45 sec) palette
CUTTING HEAD: Precitec Procutter
CNC:BECKHOFF CP3921
CAD/CAM SOFTWARE: LANTEK EXPERT CUT
NETWORK CONNECTION: Ethernet
OPERATION VIA PANEL:"21,5-inch display 1920 x 1080, alphanumeric keyboard, PLC keys on the sides, touch screen
keyboard.
AVARAGE POWER CONSUMPTION: 46 HP

All specs are subject to change without notice.
Sheet metal cutting thicknesses and speeds varies when the factors such as material quality, assist gas purity,
environment conditions, parameter setting, original spare part usage, periodical maintenances, cleanness of optics are not proper.
The quality of cuts on limit thicknesses will depend on the gometries required the quality of the material and
the operating conditions of the system. At the limit values, the cut may have burrs on the lower edge.
Cutting surface roughness increases at bigger thicknesses by fiber laser technology.
