The World’s Most Affordable CNC Angle Line
Unavailable

The World’s Most Affordable CNC Angle Line

CNC Angle Lines
Manufacturer:
OCEAN
Model:
CLIPPER II
Condition:
Build To Order
Stock #:
41004001345500

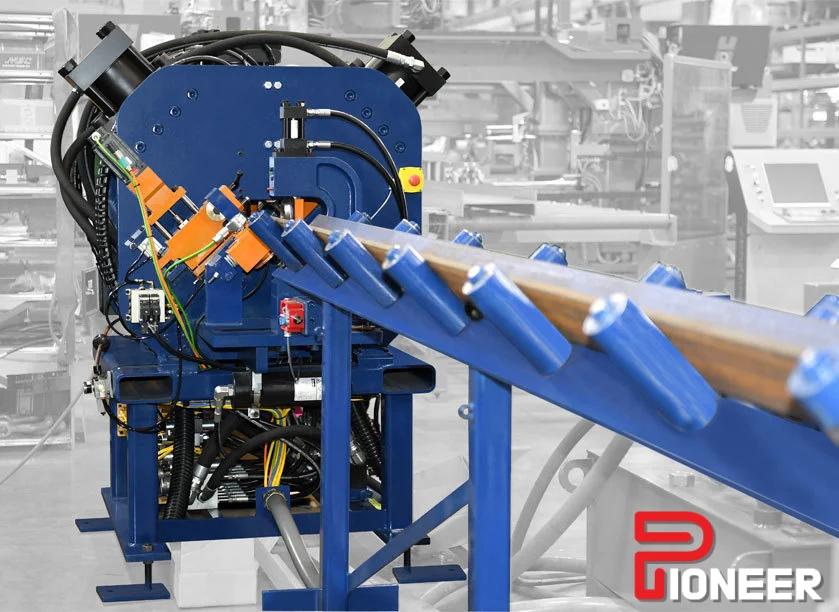

The Ocean Clipper II CNC Angle Line is not only the world’s most affordable angle line, it is also the world’s most compact angle line. The unique patented design of the Ocean CLIPPER II gives it an edge in the marketplace where processing clip angles and long bracing angles is a necessity. And the ability of the Clipper II to efficiently process short and long flat bar makes this machine so versatile. The angle processing range is from 1-1/2” x 1-1/2 x 1/8” (40 x 40 x 4mm) up to 6 x 6 x 5/8” (150 x 150 x 15mm), in any length, and for flat bar the range is from 2 x1/4” (50 x 6mm) up to 6 x 5/8” (150 x 15mm). The CLIPPER II uses a unique design featuring two punch units with removable C-frame tool holders, creating a dramatically more compact machine that is more user-friendly. This small compact size not only reduces the cost significantly, it also reduces the remnant to approximately 9″ (230mm). The small footprint required and the low cost of the machine have resulted in the Ocean CLIPPER II Series being the fastest selling angle line in the world, and has made it possible for even the smallest fabricators to have their own automated angle production. Our smallest CLIPPER II angle line customers have fewer than five shop floor employees.

Angle Sizes
Max. Angle Size 6 x 6 x 5/8″ (150 x 150 x 15mm)
Min. Angle Size 1-1/2 x 1-1/2 x 1/8″ (40 x 40 x 4mm)

Flat Bar Sizes
Max. Flat Bar Size 6 x 5/8″ (150 x 15mm)
Min Flat Bar Size 2 x 1/4″ (50 x 6mm)

Punch – Slots, Holes, Shapes etc.
Punching Tonnage 75 Tons US (68 Metric Tons)
Max. Punch Size 1-1/4″ Diameter – Standard (270)
26mm Diameter – Metric (PFP #3)

Punch Cycle Time 2 seconds
Min. Gauges (Using 272 punches, 271 dies)
11/16″ plus leg thickness for 1 1/2″ x 1 1/2″ through 2″ x 2″ angle
1 3/16″ plus leg thickness for 2 1/2″ x 2 1/2″ angle
1 1/4″ plus leg thickness for 3″ through 6″ angle sizes

Min. Gauges (Using PFP#3 punches and dies)
15mm (.59″) plus leg thickness for 40mm x 40mm (1 1/2″ x 1 1/2″) through 50mm x 50mm (2″ x 2″) angle sizes
24mm (.94″) plus leg thickness for anything over 50mm x 50mm (2″ x 2″) through 150mm x 150mm (6″ x 6″) angle sizes.

Shear – Cut to Length
Shear Tonnage 100 Tons US (91 Metric Tons)
Min. Remnant 9″ (230mm)
Shear Cycle Time 5 seconds
Slug Size 1/2″ (12.7mm)

Measurement
In-Feed Speed (X Axis) 61 FPM (18.5 meters/min.) max.

General
Machine Pass Line 45″ (1143mm)
Weight Main Assembly with Consolet – 8,500 lbs (3,860 kg)
Crate with Safety Stands & Transformer – 930 lbs (420 kg)
Power Unit – 1,100 lbs (500 kg)
Infeed Conveyor Stands – 360 lbs (163 kg) each 10′ (3m) section

Power Requirements 480V-60 Hz or 400V-50 Hz
Shop Air
90 PSIG, 10 SCFM for machines with Unist option
90 PSIG, 50 SCFM for machines with Signoscript option
None for machines without above options
Foundation 6″ (100mm) concrete

This equipment is currently unavailable. Similar equipment available now is shown below.
