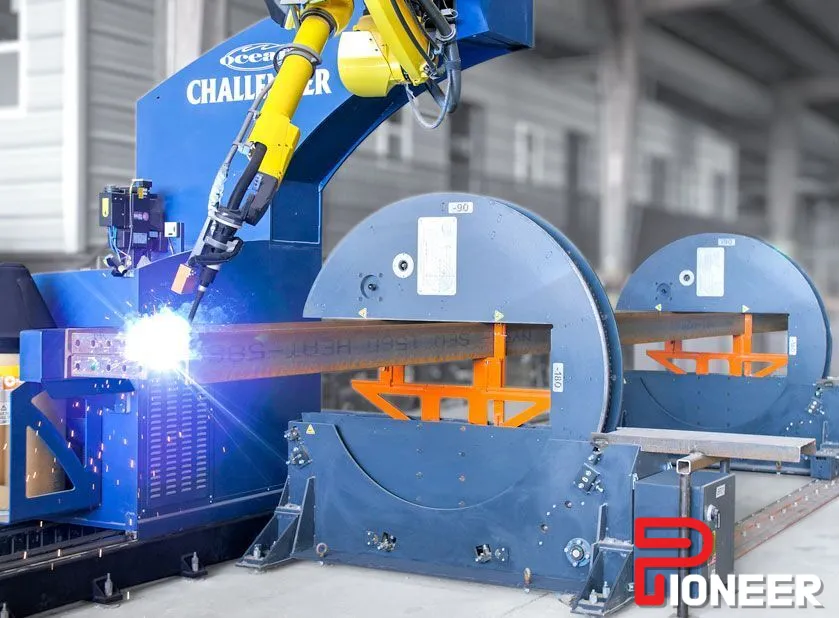

Robot Fanuc Arc Mate 120i
Welding Equipment
Lincoln Electric R450 Power Source
Wire Feeder
Welding Torch
Collision Detect
Torch Cleaning Station (reamer)
Typical Welding Speed – Fillet Welds (2F)
20 in/min for 3/16’’ weld – (500mm/min for 5mm weld)
15 in/min for 1/4’’ weld – (380mm/min for 6.5mm weld)
10 in/min for 5/16″ weld – (250mm/min for 8mm weld)
Beam Size
(Effective Welding Zone)
Section – Minimum 6″ / Maximum 40″
Length – Minimum 4′ / Maximum 50′
Gap Tolerances Maximum 1mm – No Gap Detection
Joint Detection Laser Touch Sensing
Process and Position
MCAW – Spray and Pulse Transfer – Horizontal (2F) or
GMAW – Spray and pulse transfer – Horizontal (2F)
Wire
MCAW: Hobart Fabcor Edge 0.045″ diameter (1.2mm) or
GMAW: Lincoln Electric SuperArc L-59 0.045’’ diameter (1.2mm)
Wire Classification
MCAW: AWS A5.18, A5.18M: E70C-6M H4 / CSA W48-06: E491C-6MJ-H4
GMAW: AWS A5.18/A5.18M: ER70S-6 / CSA W48-06: ER49S-6
Shielding Gas 85% Argon – 15% CO2 mix
Surface Finish All parts and beam must be clean & dry with low scale level
Electrical 480V 3ph 60Hz 50 kVA and 120V 1ph 60Hz 15A
Pneumatic
100 psi @ 20 CFM
Clean Air 0.005MM
Dry 99.9%, Unlubricated, 1/2″ NPT
Ethernet Speed Upload / Download speed > 10Mbs
Footprint w/Console & Safety Barrier 68′ x 15′ x 12’H
Weight 20,000 lbs.
