Structural Steel Modular Material Handling System

Modular Material Handling Systems
Manufacturer:
OCEAN
Model:
ELIMINATOR
Condition:
Build To Order
Stock #:
41004001345509

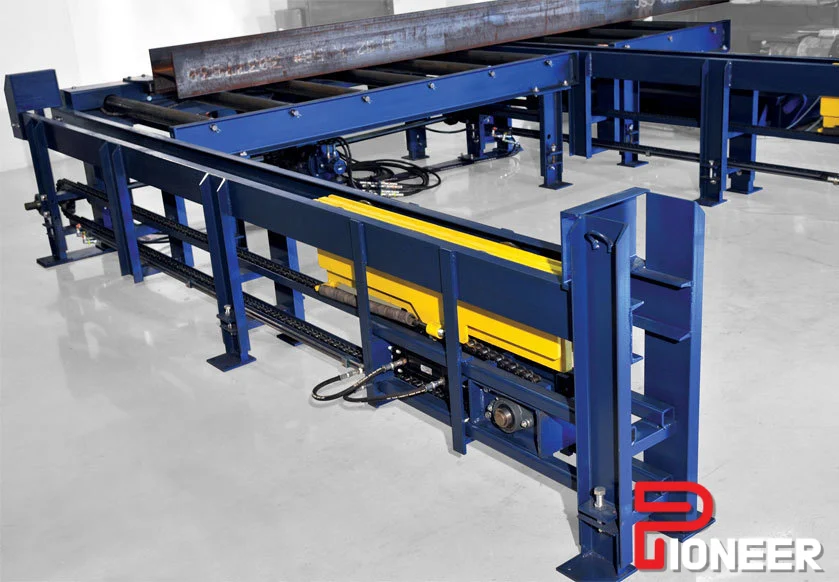

The Ocean Eliminator Modular Material Handling System is a totally modular system comprising 3 components that can be added to the system at any time without any modification. Unlike other competitive material handling systems, the entire Ocean Eliminator is supplied as a complete, easy-to-install system and includes the variable speed drives, operating control pedestal as well as all the hoses and fittings. The Ocean Eliminator eliminates the unnecessary material handling in structural steel that is destroying productivity and profitability. On average fabricators handle each beam 17-20 times from the time the raw material arrives at his shop to the time it has it on the truck ready to be shipped to site. Removing this non-value-added component from your fabrication process must be one of your highest priorities. And to this end, Ocean Machinery designed a totally modular system that can be modified, extended or upgraded at any time, not locking in the customer to a system that gets outdated the minute it is installed. The Ocean Eliminator Material Handling System is ideal for saws, beam drilling or punching lines, beam coping lines, shot blast machines, paint lines, etc, and will help you significantly reduce your labor and fabrication costs, as well as improve the safety of your workplace.

Powered Roller Conveyors for Structural Steel
Modular Section Lengths
4′ and 9′ (1220mm and 2740mm)
Effective Length is 5′ and 10′ (1524mm and 3048mm) with 12″ (300mm) gap between sections

Roller Spacing 18″ (457mm) on centers
Roller Diameter 3-1/2″ (89mm)
Usable Roller Width 30″ (760mm) and 44″ (1120mm)
Conveyor Chain #60
Capacity 700 pounds per foot (1000kg/m)
Drives Electric Inverter Drive – variable speed control
Transport Speed 20 FPM (6m/min) forward and reverse
Controls In-feed, Out-feed, Both, Forward, Reverse, Variable Speed, E-stop
Note: All Powered Roller Conveyor Systems are complete and include all hoses, hardware and fittings.

Cross Transfer Systems for Structural Steel
Transfer System 4-arm or 5-arm Systems
Transfer Lengths 20′ or 40′ (6m or 12m)
Lifting Capacity per Arm 2,500 lbs (1000kg)
Conveyor Chain 100#
Transfer Speed 20 FPM (6m/min) forward and reverse
Drive Hydraulic Drive
Controls In-feed, Out-feed, Left, Right, E-stop
Note: All Cross Transfer Systems are complete and include all hoses, hardware and fittings as well as the cross-under chain drive kit for your roller conveyor sections to allow for the cross transfer arm.

Measuring Stop for Structural Steel
Measurement Method Steel Tape with CCTV Display
Contact Arm Lift Hydraulic
Contact Arm Clamping Hydraulic
Positioning Accuracy Initial +/- 1/8″; Repeatability +/- 1/16″ (1.5mm)
Maximum Measuring Length 65′ (19.8m)
Controls Fast, Slow, Forward, Reverse, Raise, Lower, Clamp, E-stop
Note: All Measuring Devices are complete and include rails, hoses, cables, festoon system, hardware and fittings.
