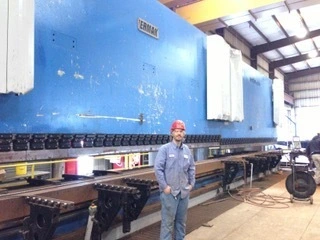

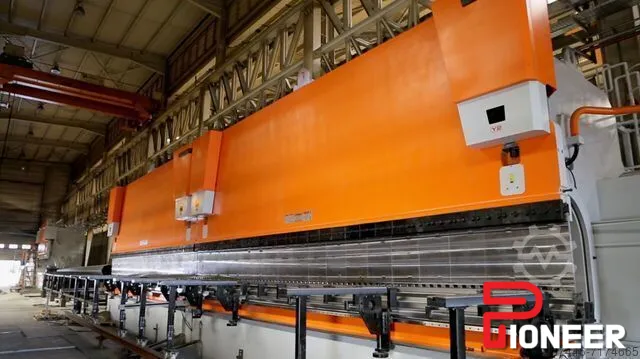

ERMAKSAN Tandem SpeedBend 26.5' x 1375Ton

BENDING LENGTH ( A ) 2x 318,90 "
MAX. POWER 2x 1375 US Tons
MAX.BENDING CAPACITY (59738 psi) 0,63 " V= 3,9 "
MAX.BENDING CAPACITY (73974 psi) 0,55 " V= 3,9 "
MAX.BENDING CAPACITY (81087 psi) 0,51 " V= 3,9 "
MAX.BENDING CAPACITY (89622 psi) 0,51 " V= 3,9 "
MAX.BENDING CAPACITY (99580 psi) 0,47 " V= 3,9 "
AXIS NUMBER OF MACHINE 2x Y1,Y2 -
FREE DOWN SPEED 2,60 in/s
BENDING SPEED 0,20 in/s
RETURN BACK SPEED 1,85 in/s
STROKE ( C ) ( Y1 , Y2 ) 20,08 "
BACK GAUGE STROKE ( X AXIS ) 2x - "
BACK GAUGE STROKE ( R AXIS ) 2x - "
BACK GAUGE STROKE ( R AXIS ) 2x -
DISTANCE BETWEEN HOUSING ( B ) 2x 259,84 -
CROWNING HYDRO MECHANICAL -
THROAT DEPTH ( E ) 39,37 "
TABLE HEIGHT ( F ) 31,50 "
TABLE WIDTH ( G ) 15,75 "
DAYLIGHT ( D ) 46,26 "
PLANT VOLTAGE 380 V
IP 54 -
MAIN MOTOR 2x 74 HP
BACK GAUGE MOTORS 2x - -
PLANT TEMPERATURE 0-50 oC
MAX. NOISE 70 dB
OIL CAPACITY 2x 317,04 US Gallons
MAX. PRESSURE 4052,7 psi
MACHINE LENGTH ( L ) 2x 399,61 "
MACHINE WIDTH ( W ) 153,15 "
MACHINE HEIGHT ( H ) 212,60 "
PART OF MACHINE UNDERGROUND ( N ) 59,06 "
DEPTH ( T ) 9,84 "
WEIGHT 2x 329482,57 lbs
WEIGHT OF UNLOADING SYSTEM 2x 8463,36 lbs
TOTAL WEIGHT 667428,50 lbs
