New

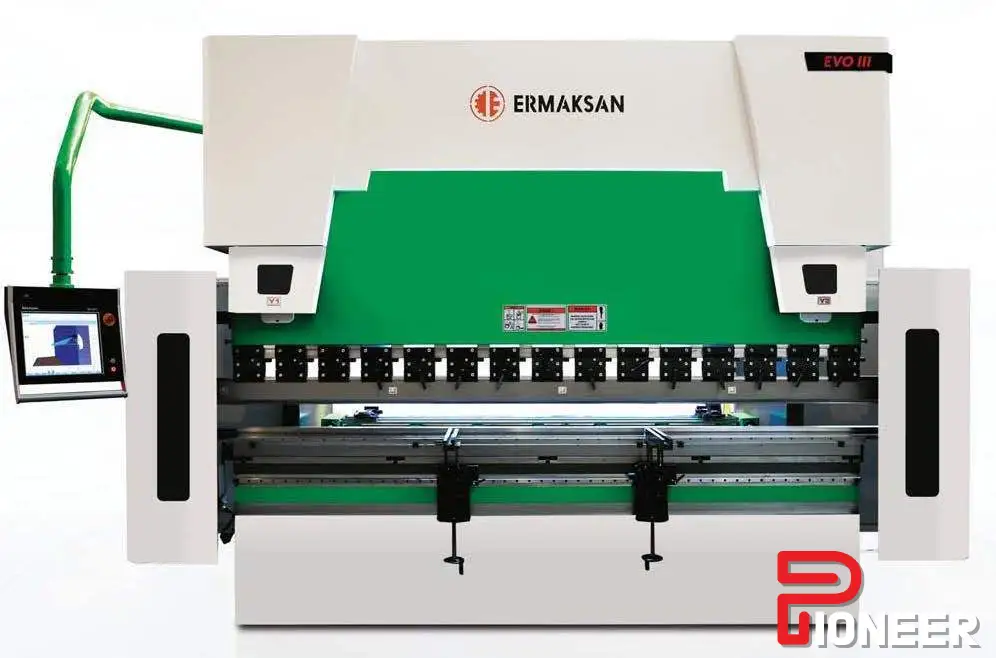

ERMAKSAN EVO-III 12' x 242Ton w/ Delem 69T Controller
Press Brakes
New ERMAKSAN EVO-III Press Brake: 242T capacity, 6-axis, CNC, LAZERSAFE protection, SIEMENS electrics. Add precision to your fabrication with cutting-edge technology.
| Tonnage | 242 T |
| # Axis | 6 |
| Control | CNC (Delem 69T) |
| Dimensions | 201 X 89 x 114 |
| Weight | 28101 |
Bending Length (A) 148 "
Max Power 242 US Tons
Max Bending Capacity (59738 psi) 0.31 " V=3.1
Axis Number of Machine Y1,Y2,X,R,Z1,Z2 -
Free Down Speed 7.09 in/s
Bending Speed 0.39 in/s
Return Back Speed 6.85 in/s
Stroke (C) (Y1, Y2) 10.83 "
Back Guage Stroke (X Axis) 31.50 "
Back Guage Stroke (R Axis) 9.84 "
Distance Between Housing (B) 127.95 -
Crowning Motorized -
Throat Depth (E) 16.14 "
Table Height (F) 35.43 "
Table Width (G) 6.30 "
Daylight (D) 21.65 "
Plant Voltage 460 V
IP 54 -
Main Motor 2x20.502 HP
Back gauge Motor (X,R) 2X2,4+2X1,27 Nm
Plant Temperature 0-50 C
Max Noise 70dB
Oil Capacity 2X14.5 US Gallons
Max Pressure 4053 psi
Machine Length (L) 201 "
Machine Width (W) 89 "
Machine Height (H) 114 "
Weight 28101 lbs
DELEM DA-69T, TOUCH SCREEN CNC CONTROLLER 1
TOTAL OF 6 AXIS (Y1, Y2, X, R,Z1, Z2) X:800 MM, R=250MM 1
ERMAKSAN FOUR AXIS BACKGAUGE (X, R, Z1, Z2) 1
AMERICAN PROMECAM QUICK RELEASE 1
ROLLERI TOP TOOL ROLLERI - 0813/011/11 1
M460-R 4 V BOTTOM TOOL 1
275 (10,8”) MM HIGH STROKE 1
410 (16”) MM THROAT DEPTH 1
460 VOLTAGE, 3PH, 60HZ SINGLE VOLTAGE 1
LAZERSAFE LIGHT GUARD FOR FINGER PROTECTION 1
CNC CROWNING SYSTEM (ANTI-DEFLECTION) 1
BACK SIDE SAFETY – DOOR WITH SWITCH 1
SIDE GUARDS WITH SWITCH 1
DOUBLE FOOT PEDAL CONTROLLER 1
HOERBIGER SYSTEM 1
SIEMENS ELECTRIC SYSTEM 1
SLIDING FRONT SUPPORT ARMS 2
STANDARD TABLE 1
ENGLISH LABEL 1
ENGLISH MANUAL 1
