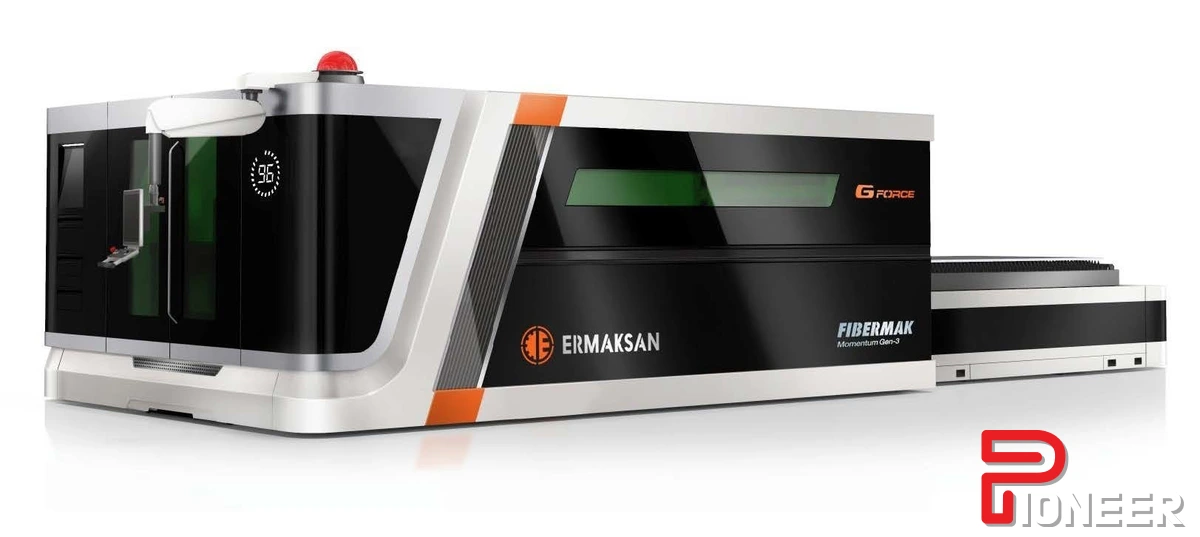

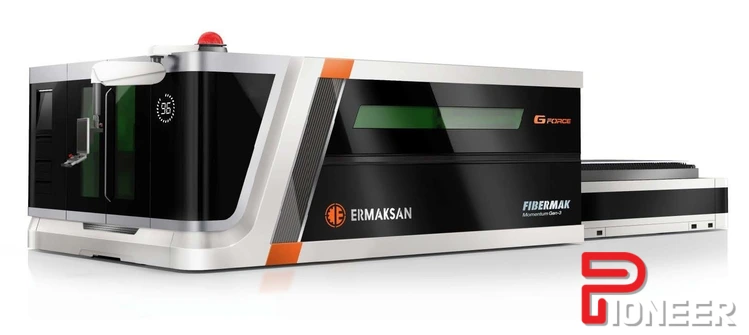

ERMAKSAN G Force 6' x 12' 10kW

RESONATOR YLS 10000
POWER RANGE 10-105 %
LASER BEAM QUALITY @ COLLIMATOR 2-4 mm mrad
POWER STABILITY 1-2 %
PULSE FREQUENCY RANGE 5 kHz
LASER WAVE LENGTH 1075 ± 5 nm
OUTPUT FIBER CORE DIAMETER 100 μm
EXCITATION Laser diod
COOLING WATER 15.9 Gallon/Min
CUTTING CAPACITY (Maximum)
MILD STEEL (S235JR, S355MC) 1 3/16" (suitable sheet for laser cutting)
1" standart
STAINLESS STEEL (AISI 304) 1" (suitable sheet for laser cutting )
51/64" standart
ALUMINUM (AlMg3) 1 3/16" (suitable sheet for laser cutting)
1" standart
BRASS (CuZn37) 5/16"
COPPER (Cu-ETP) 5/16"
MAXIMUM WORKSHEET DIMENSIONS 157 x 79
MAXIMUM BURDEN CAPACITY 6900 pounds
MACHINE AXES 4-Axes [X, Y, Z, U ]
AXIAL MOVEMENTS
X, U AXES Servo Motorized Table 159.4
Y AXIS Servo Motorized Bridge 81
Z AXIS Servo Motorized Cutting Head 5.9
ACCELERATIONS
X, U, Y, Z AXES Servo Motorized 2.5 G
MAXIMUM AXES VELOCITIES 5551 (simultaneous)
( X, Y single axis velocity 3937Inch/min) IPM
POSITIONING ACCURACY ± 0,001 inch
REPETITION ACCURACY ± 0,0006 inch
SHUTTLE TABLE (Automatic Loading - Unloading Unit) 2 ( 45 sec ) palette
ASSIST GAS
MILD STEEL Oxygen (0,5-6 Bar)
STAINLESS STEEL Nitrojen ( 0,5-25 Bar)
ALUMINUM Dry Air or Nitrogen ( 0,5-25 Bar)
CUTTING HEAD Precitec Procutter 2.0
CNC BECKHOFF CP3921
CAD/CAM SOFTWARE Metalix
NETWORK CONNECTION Ethernet
OPERATION VIA PANEL 21,5-inch display 1920 x 1080,
alphanumeric keyboard, PLC keys on the sides, touch screen keyboard
AVARAGE POWER CONSUMPTION 56 HP
MACHINE DIMENSIONS ( L x W x H ) 489 x 232 x 91
MACHINE WEIGHT 40783
