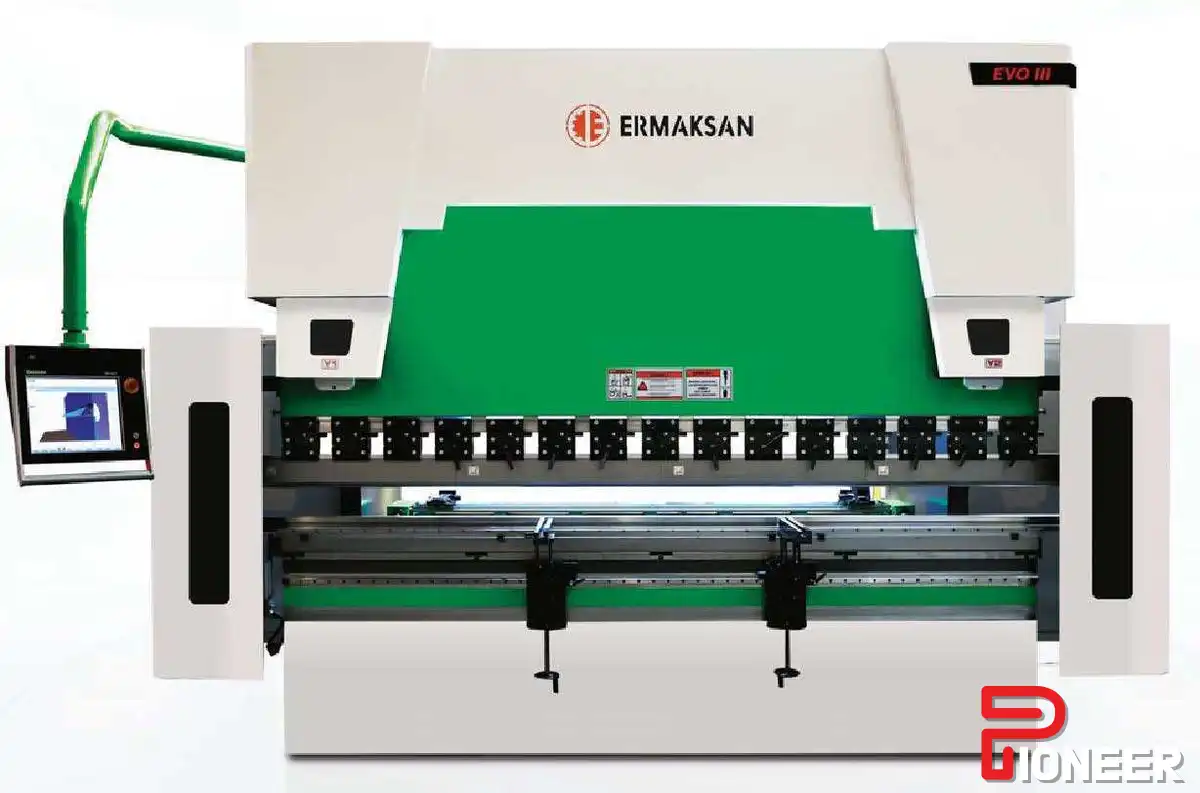

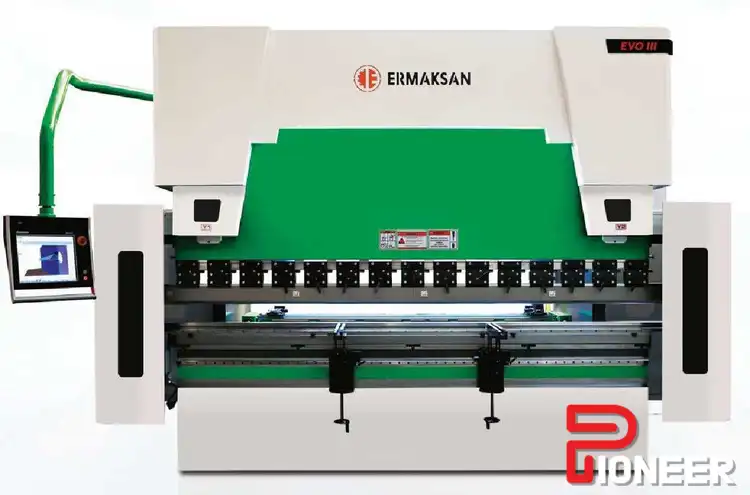

ERMAKSAN EVO-III 10’ x 150Ton with Delem 69T Controller

Bending Length (A) 122
Max Bending Capacity .24
Axis Number of machine Y1,Y2,X,R,Z1,Z2
Free Down Speed 7.09 in/s
Bending Speed .37 in/s
Return Back Speed 6.30 in/s
Stroke (c) (Y1, Y2) 11"
Back Gauge Stroke (X Avis) 31"
Back Guage Stroke (R Axis) 10"
Distance Between Housing (B) 102"
Crowing Motorized
Throat Depth (E) 16"
Table Height (F) 35"
Table Width (G) 4"
Daylight (D) 22"
Plant Voltage 460 V
IP 54
Main Motor 2x13,94 HP
Back Gauge Motors (X,R,Z1,Z2) 2x2,4+2x1,27 Nm
Plant Temperature 0-50 C
Max Noise 70dB
Oil Capacity 2x9, 1 US Gallons
Max Pressure 3825 psi
Machine Length (L) 187
Machine Width (W) 89
Machine Height (H) 114
Weight 18047 lbs
