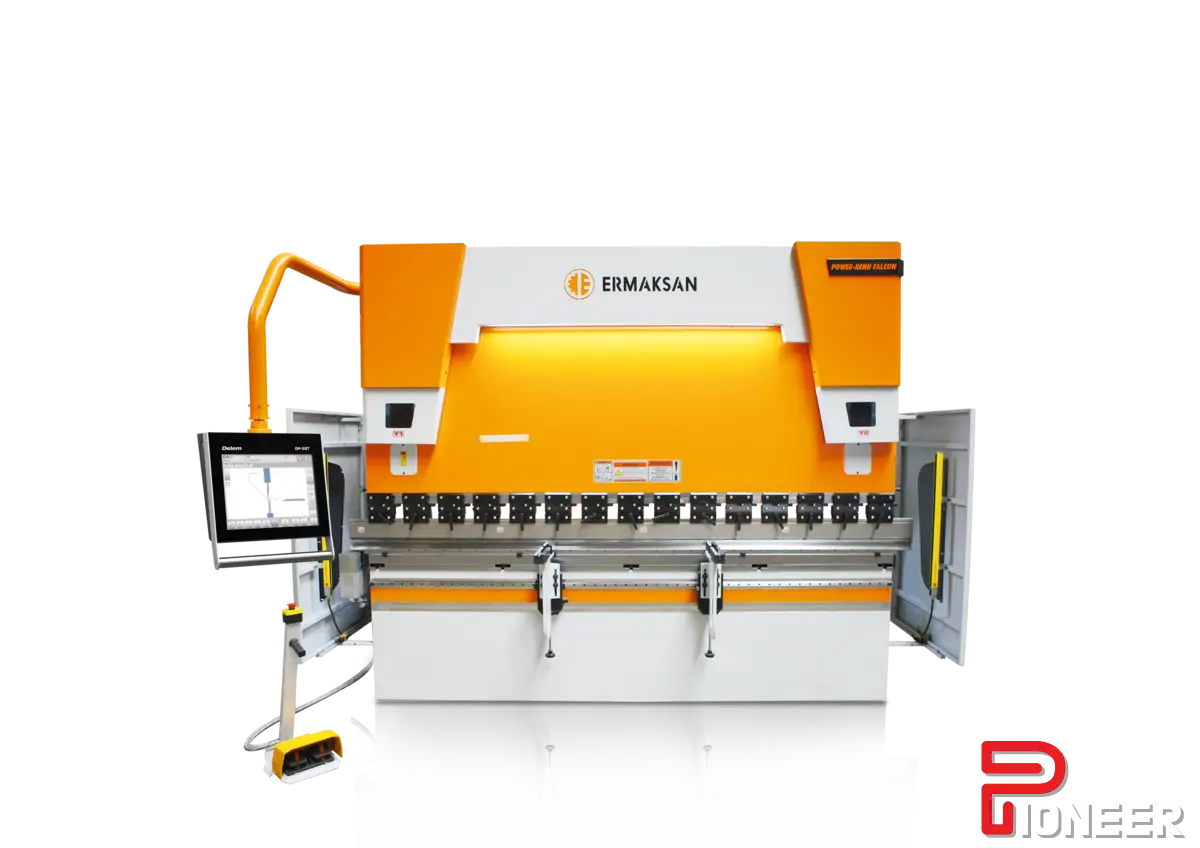

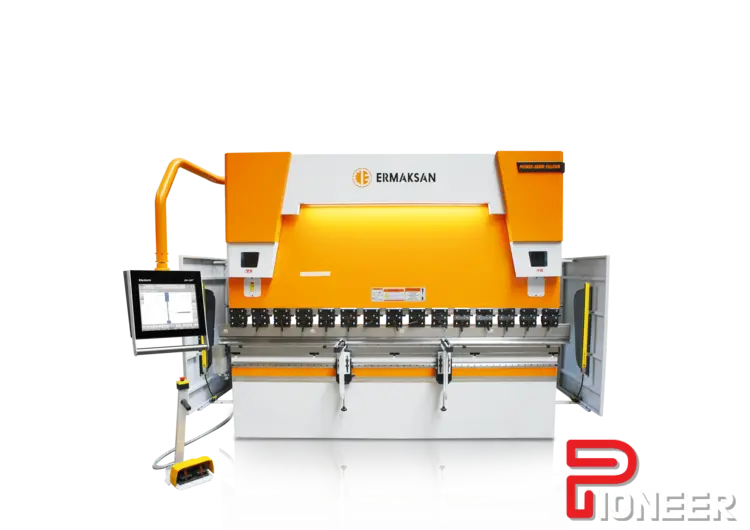

ERMAKSAN Falcon-Bend 20' x 440Ton w/ Delem 58T Controller

BENDING LENGTH ( A ) 240,2 "
MAX. POWER 440 US Tons
MAX.BENDING CAPACITY (59748 psi) 0,43 " V=4.3"
MAX.BENDING CAPACITY (81087 psi) 0,35 " V=4.3"
MAX.BENDING CAPACITY (89622 psi) 0,31 " V=4.3"
AXIS NUMBER OF MACHINE Y1,Y2,X,R -
FREE DOWN SPEED 3,1 in/s
BENDING SPEED 0,3 in/s
RETURN BACK SPEED 2,6 in/s
STROKE ( C ) ( Y1 , Y2 ) 14,8 "
BACK GAUGE STROKE ( X AXIS ) 31,5 "
BACK GAUGE STROKE ( R AXIS ) 9,8 "
DISTANCE BETWEEN HOUSING ( B ) 200,8 "
CROWNING MOTORIZED -
THROAT DEPTH ( E ) 20,1 "
TABLE HEIGHT ( F ) 43,3 "
TABLE WIDTH ( G ) 7,9 "
DAYLIGHT ( D ) 25,6 "
PLANT VOLTAGE 380 V
IP 54 -
MAIN MOTOR 40,2 HP
BACK GAUGE MOTORS (X ,R) 2,4+4,78 Nm
PLANT TEMPERATURE 0-50 oC
MAX. NOISE 70 dB
OIL CAPACITY 105,7 US Gallons
MAX. PRESSURE 3555 psi
MACHINE LENGTH ( L ) 301,2 "
MACHINE WIDTH ( W ) 104,3 "
MACHINE WIDTH (K) 85,4 "
MACHINE HEIGHT ( H ) 147,6 "
WEIGHT 87939,6 lbs
