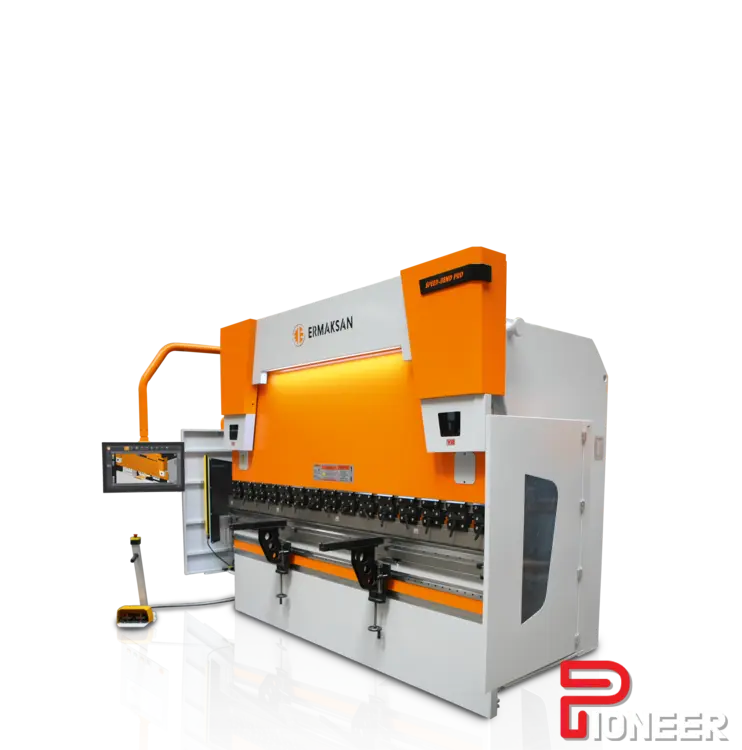

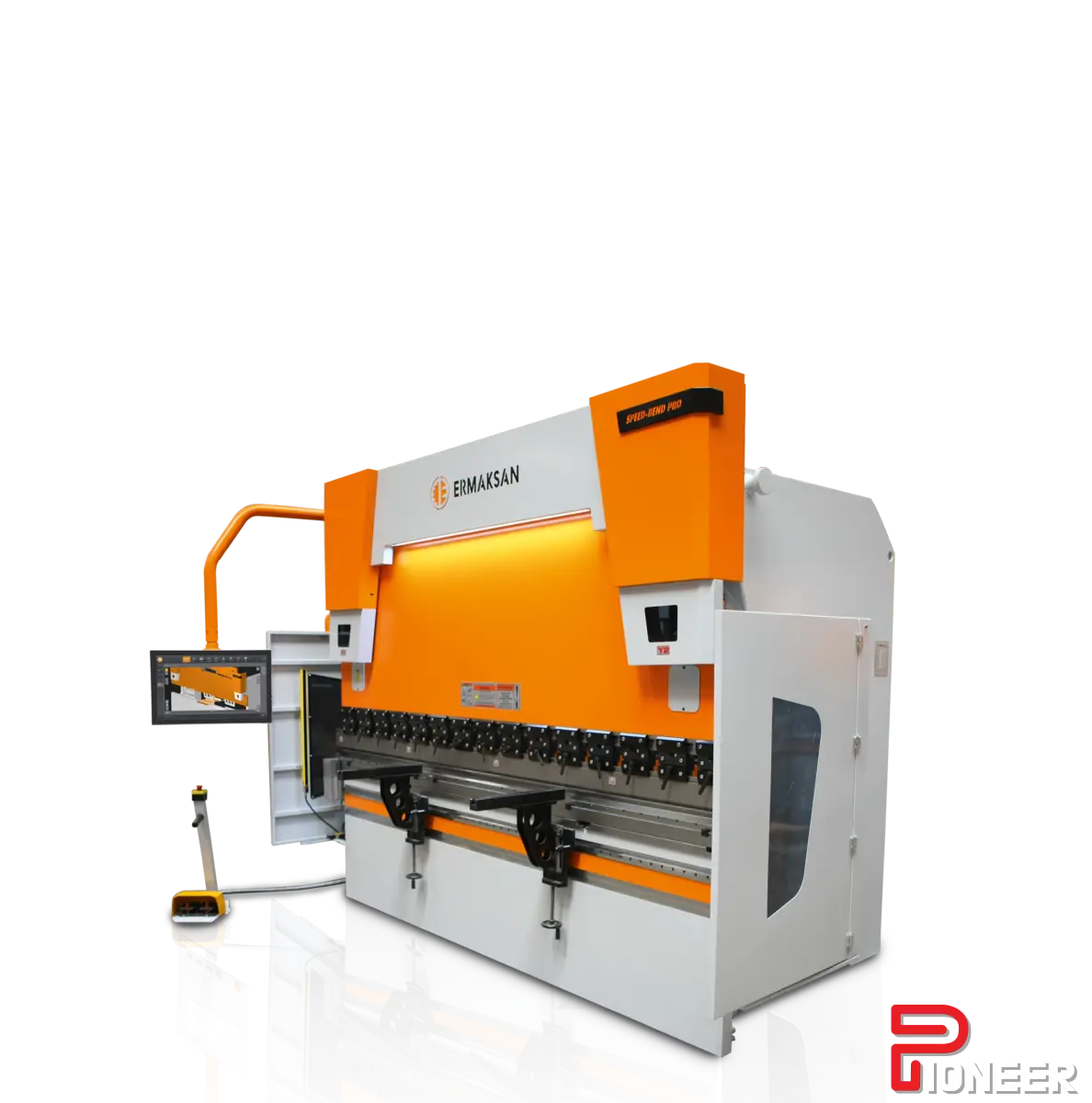

ERMAKSAN Speed-Bend 14' x 150Ton

BENDING LENGTH ( A ) 4270 mm
MAX. POWER 175 ton
MAX.BENDING CAPACITY (42 kgf/mm2) 5 mm
MAX.BENDING CAPACITY (52 kgf/mm2) 5 mm
MAX.BENDING CAPACITY (57 kgf/mm2) 4 mm
MAX.BENDING CAPACITY (63 kgf/mm2) 4 mm
MAX.BENDING CAPACITY (70 kgf/mm2) 4 mm
AXIS NUMBER OF MACHINE Y1,Y2,X,R,Z1,Z2 -
FREE DOWN SPEED 180 mm/s
BENDING SPEED 12 mm/s
RETURN BACK SPEED 190 mm/s
STROKE ( C ) ( Y1 , Y2 ) 275 mm
BACK GAUGE STROKE ( X AXIS ) 800 mm
BACK GAUGE STROKE ( R AXIS ) 250 mm
DISTANCE BETWEEN HOUSING ( B ) 3780 mm
CROWNING MOTORIZED -
THROAT DEPTH ( E ) 410 mm
TABLE HEIGHT ( F ) 900 mm
TABLE WIDTH ( G ) 90 mm
DAYLIGHT ( D ) 550 mm
PLANT VOLTAGE 380 V
IP 54 -
MAIN MOTOR 15 kW
BACK GAUGE MOTORS (X,R,Z1,Z2) 2x2.4+2x1.27 Nm
PLANT TEMPERATURE 0-50 ºC
MAX. NOISE 70 dB
OIL CAPACITY 300 lt
MAX. PRESSURE 280 bar
MACHINE LENGTH ( L ) 5280 mm
MACHINE WIDTH ( W ) 2150 mm
MACHINE HEIGHT ( H ) 2850 mm
WEIGHT 12500 kg
