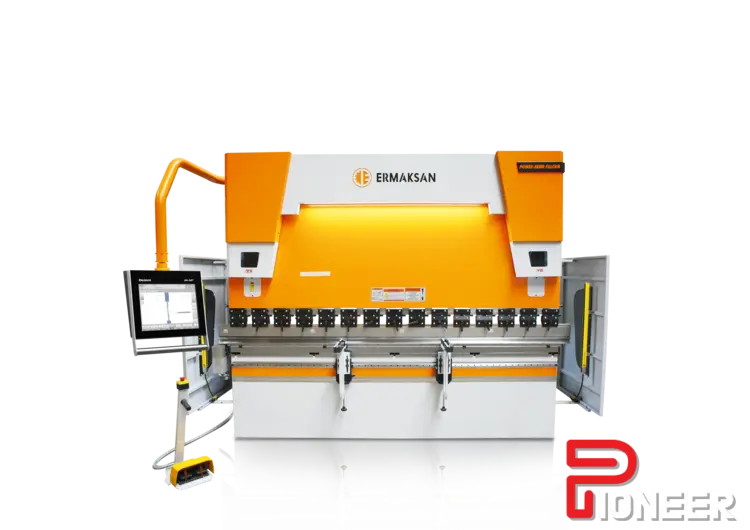

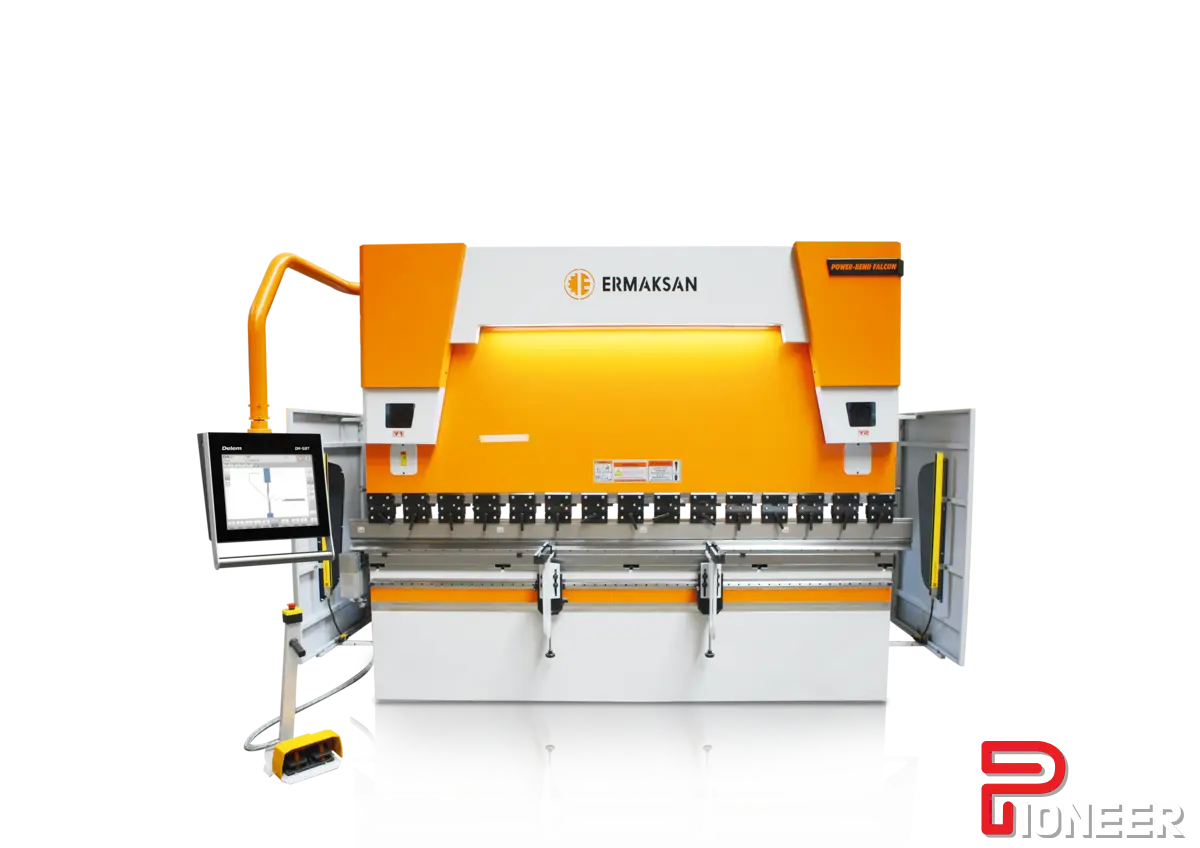

ERMAKSAN Falcon-Bend 14' x 350Ton

BENDING LENGTH ( A ) 168
MAX. POWER 352 US Tons
MAX.BENDING CAPACITY (59748 psi) 0.47 " V= 4.72
MAX.BENDING CAPACITY (73974 psi) 0.43 " V= 4.72
MAX.BENDING CAPACITY (81087 psi) 0.39 " V= 4.72
MAX.BENDING CAPACITY (89622 psi) 0.39 " V= 4.72
MAX.BENDING CAPACITY (99580 psi) 0.35 " V= 4.72
AXIS NUMBER OF MACHINE Y1,Y2,X,R
FREE DOWN SPEED 5.5 in/s
BENDING SPEED 0.4 in/s
RETURN BACK SPEED 5.9 in/s
STROKE ( C ) ( Y1 , Y2 ) 14.8
BACK GAUGE STROKE ( X AXIS ) 31.5
BACK GAUGE STROKE ( R AXIS ) 9.8
DISTANCE BETWEEN HOUSING ( B ) 148.8
CROWNING MOTORIZED
THROAT DEPTH ( E ) 16.1
TABLE HEIGHT ( F ) 35.4
TABLE WIDTH ( G ) 8.7
DAYLIGHT ( D ) 25.6
PLANT VOLTAGE 230 or 460 V
IP 54 -
MAIN MOTOR 40 HP
BACK GAUGE MOTORS (X ,R) 2x2.4 Nm
PLANT TEMPERATURE 0-50 oC
MAX. NOISE 70 dB
OIL CAPACITY 106 US Gallons
MAX. PRESSURE 3697 psi
MACHINE LENGTH ( L ) 220
MACHINE WIDTH ( W ) 96
MACHINE WIDTH (K) 77
MACHINE HEIGHT ( H ) 126
WEIGHT 49810 lbs
