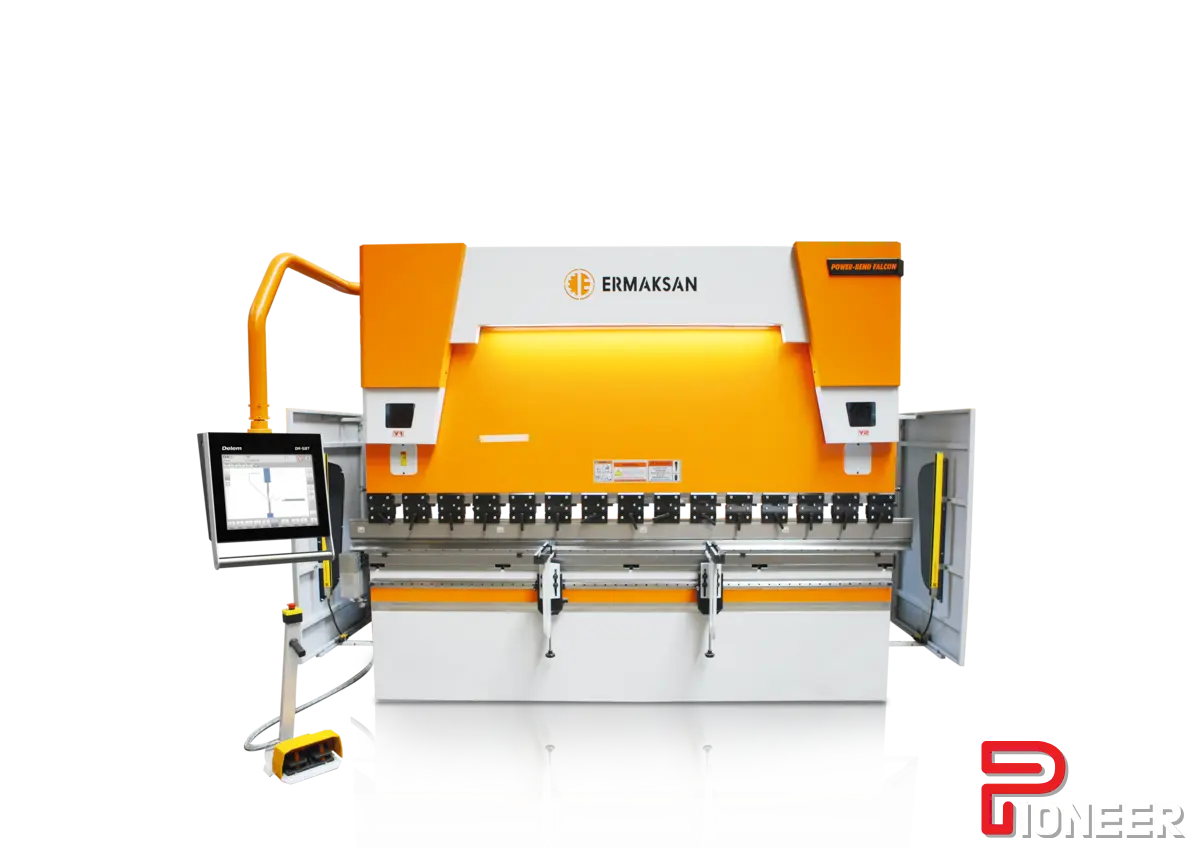

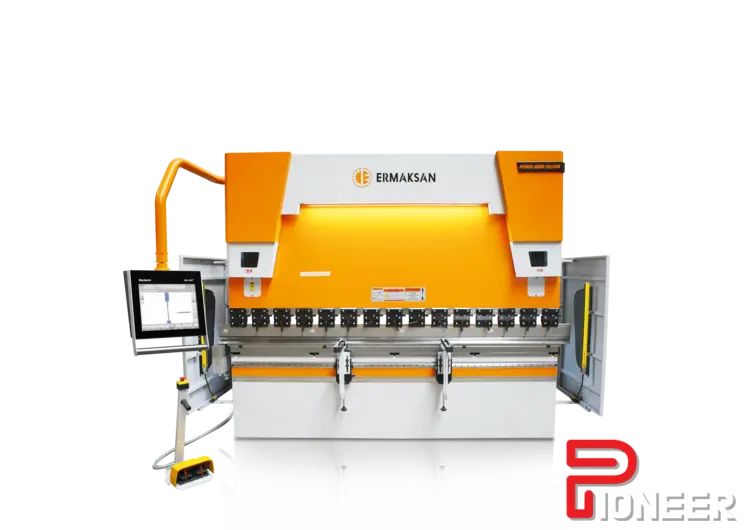

ERMAKSAN Falcon-Bend 10' x 192Ton w/ Delem 58 Controller

BENDING LENGTH ( A ) 122.0"
MAX. POWER 192.5 US Tons
MAX.BENDING CAPACITY (59748 psi) 0.28" V= 1.97"
MAX.BENDING CAPACITY (81087 psi) 0.24" V= 1.97"
MAX.BENDING CAPACITY (89622 psi) 0.22" V= 1.97"
MAX.BENDING CAPACITY (99580 psi) 0.20" V= 1.97"
AXIS NUMBER OF MACHINE Y1,Y2,X,R -
FREE DOWN SPEED 7.1 in/s
BENDING SPEED 0.4 in/s
RETURN BACK SPEED 5.3 in/s
STROKE ( C ) ( Y1 , Y2 ) 10.8"
BACK GAUGE STROKE ( X AXIS ) 31.5"
BACK GAUGE STROKE ( R AXIS ) 9.8"
DISTANCE BETWEEN HOUSING ( B ) 102.4"
CROWNING MOTORIZED -
THROAT DEPTH ( E ) 16.1"
TABLE HEIGHT ( F ) 35.4"
TABLE WIDTH ( G ) 3.5"
DAYLIGHT ( D ) 21.7"
PLANT VOLTAGE 230 or 460 V
IP 54
MAIN MOTOR 20 HP
BACK GAUGE MOTORS (X ,R) 2x2,4 Nm
PLANT TEMPERATURE 0-50 oC
MAX. NOISE 70 dB
OIL CAPACITY 53 US Gallons
MAX. PRESSURE 3982 psi
MACHINE LENGTH ( L ) 167"
MACHINE WIDTH ( W ) 85"
MACHINE WIDTH (K) 66"
MACHINE HEIGHT ( H ) 110"
WEIGHT 21158 lbs
