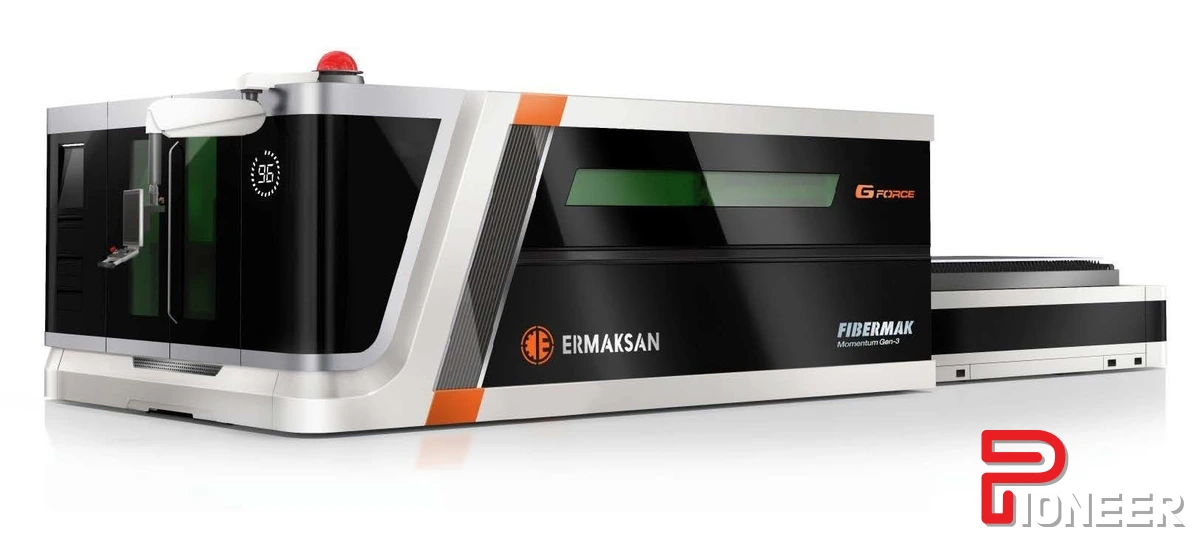

ERMAKSAN G Force 6x12 4KW

RESONATOR 4000 WATT
POWER RANGE 10-105 %
LASER BEAM QUALITY @ COLLIMATOR 2 - 2.5 mm mrad
POWER STABILITY 1 - 2
PULSE FREQUENCY RANGE 5 kHz
LASER WAVE LENGTH 1075 ± 5 nm
OUTPUT FIBER CORE DIAMETER 100
EXCITATION -
COOLING WATER FLOW RATE 5,3 GALLON/MIN
CUTTING CAPACITY (Maximum)
MILD STEEL (S235JR, S355MC)3/4 inch
STAINLESS STEEL (AISI 304)1/2 inch
ALUMINUM (AlMg3)3/8 inch
BRASS (CuZn37)1/4 inch
COPPER (Cu-ETP) 1/4 inch
MAXIMUM WORKSHEET DIMENSIONS 157 X 79 inch
MAXIMUM BURDEN CAPACITY 5511 pounds
MACHINE AXES 4- Axes [X,Y,Z,U]
AXIAL MOVEMENTS
X, U AXES Servo Motorized Table 159 inch
Y AXIS Servo Motorized Bridge 81 inch
Z AXIS Servo Motorized Cutting Head 6 inch
ACCELERATIONS
X, U AXES Servo Motorized Table 2,5 G
Y AXIS Servo Motorized Bridge 2,5 G
Z AXIS Servo Motorized Cutting Head 2,5 G
MAXIMUM AXES VELOCITIES
[5551 (simultaneous)(X, Y single axis velocity3937 Inch/min) ] IPM
POSITIONING ACCURACY ± 0,001 inch
REPETITION ACCURACY ± 0,0006 inch
SHUTTLE TABLE (Automatic Loading - Unloading Unit) 2(45 sec) palette
ASSIST GAS -
Assist sensor 1 Oxygen 0,5-6 Bar
Assist sensor 2 Nitrojen 0,5-25 Bar
Assist sensor 3 Dry Air 0,5-25 Bar
CUTTING HEAD Precitec Procutter
CNC BECKHOFF CP6242
CAD /CAM SOFTWARE LANTEK EXPERT CUT
NETWORK CONNECTION Ethernet
OPERATION VIA PANEL 15-inch display 1024 x 768, alphanumeric keyboard, PLC keys
on the sides, touch screen keyboard
AVARAGE POWER CONSUMPTION 30 HP
MACHINE DIMENSIONS ( L x W x H )489 X 223 X 91
MACHINE WEIGHT 40012 pounds
