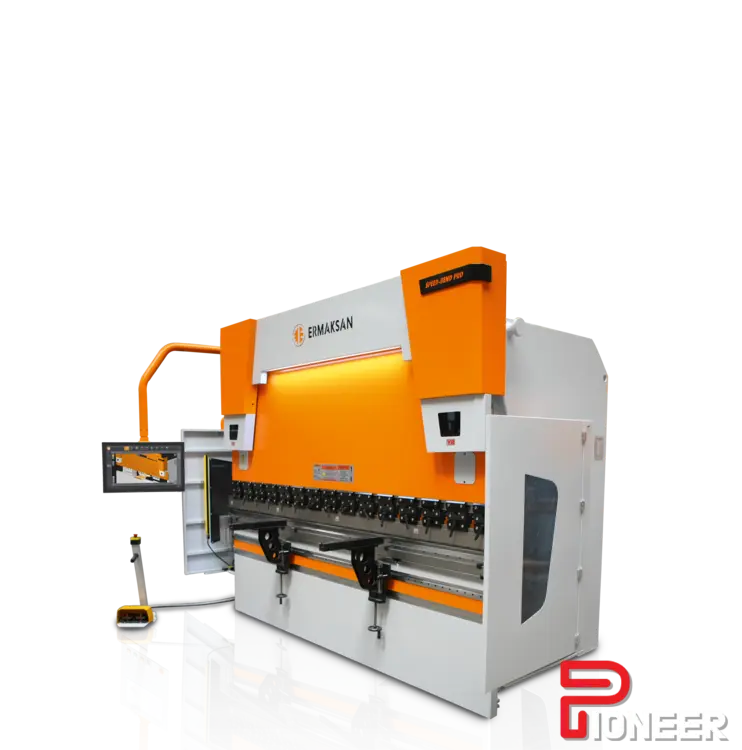

Custom ERMAKSAN Speed-Bend 16 Ft x 350 Ton w/ Delem 66T
Have one to sell?
ConditionNew
New
Introducing the new ERMAKSAN Speed-Bend 16 Ft x 350 Ton w/ Delem 66T Press Brake. Featuring a 350-ton capacity, 289.37" length, and 6 axes for precision. With a stroke of 14.76" and motorized crowning, this hydraulic machine is designed for efficiency and performance. Machine comes with HORN on both sides to make bending length 20 feet.
BENDING LENGTH ( A ) 240.16
MAX. POWER 352 US Tons
MAX.BENDING CAPACITY (59738 psi) 0.35" V= 4.3"
MAX.BENDING CAPACITY (73974 psi) 0.31" V= 4.3"
MAX.BENDING CAPACITY (81087 psi) 0.31" V= 4.3"
MAX.BENDING CAPACITY (89622 psi) 0.31" V= 4.3"
MAX.BENDING CAPACITY (99580 psi) 0.28" V= 4.3"
AXIS NUMBER OF MACHINE Y1,Y2,X,R,Z1,Z2
FREE DOWN SPEED 3.15 in/s
BENDING SPEED 0.41 in/s
RETURN BACK SPEED 2.95 in/s
STROKE ( C ) ( Y1 , Y2 ) 14.76"
BACK GAUGE STROKE ( X AXIS ) 31.50"
BACK GAUGE STROKE ( R AXIS ) 9.84"
DISTANCE BETWEEN HOUSING ( B ) 161.42"
CROWNING MOTORIZED
THROAT DEPTH ( E ) 16.14"
TABLE HEIGHT ( F ) 41.34"
TABLE WIDTH ( G ) 7.87"
DAYLIGHT ( D ) 25.59"
PLANT VOLTAGE 380 V
IP 54
MAIN MOTOR 40 HP
BACK GAUGE MOTORS (X , R,Z1,Z2) 2,4+4,78+2x1,27 Nm
PLANT TEMPERATURE 0-50 oC
MAX. NOISE 70 dB
OIL CAPACITY 105.68 US Gallons
MAX. PRESSURE 3697.2 psi
MACHINE LENGTH ( L ) 289.37"
MACHINE WIDTH ( W ) 96.46"
MACHINE HEIGHT ( H ) 141.73"
WEIGHT 68515.748 lbs
