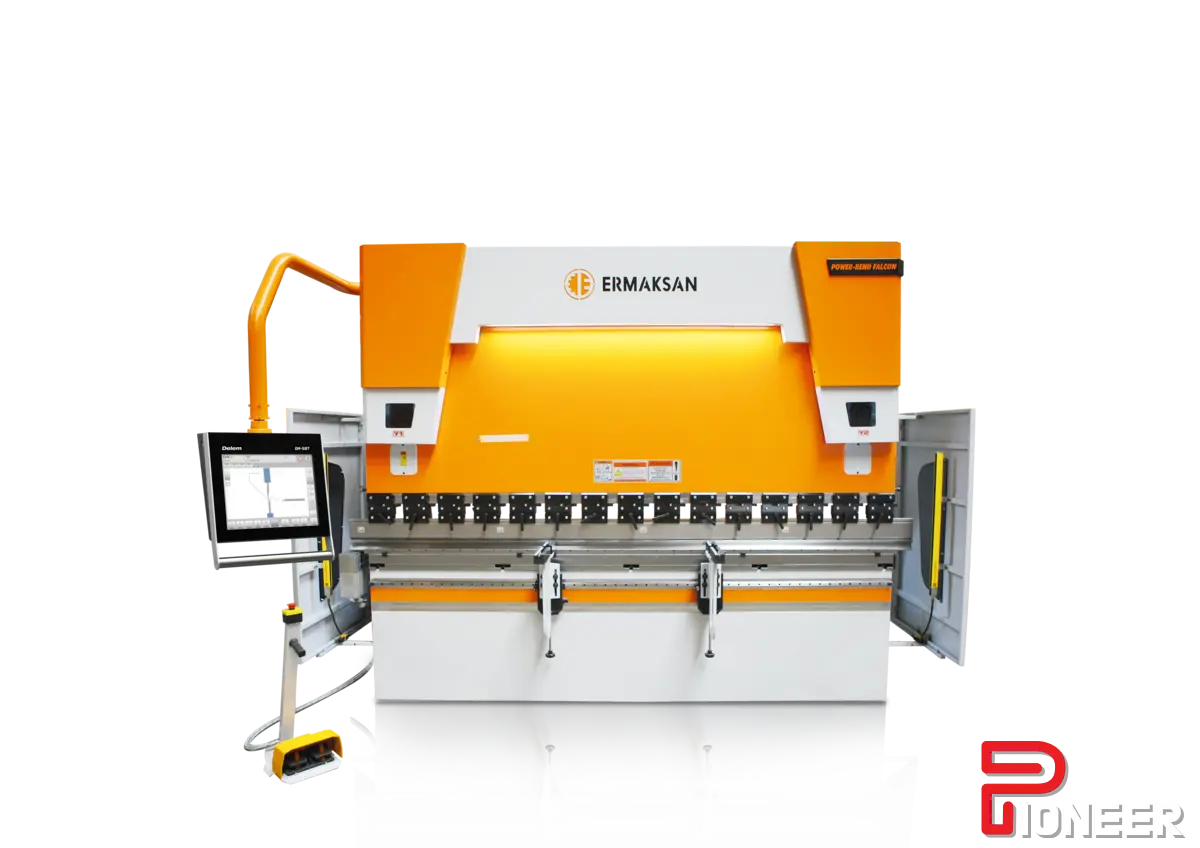

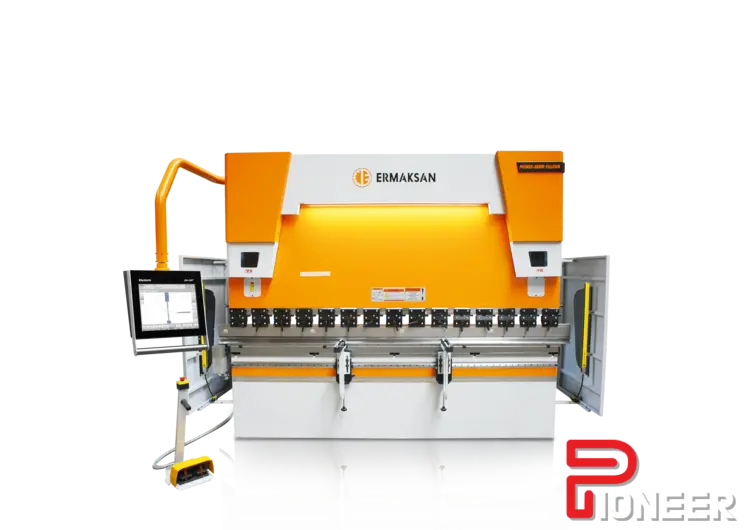

New ERMAKSAN Falcon-Bend 6 Ft x 66 Ton w/ Delem 58T | Press Brakes

BENDING LENGTH ( A ) 82,7"
MAX. POWER 66 US Tons
MAX.BENDING CAPACITY (59748 psi) 0,16" V=1.96"
MAX.BENDING CAPACITY (73974 psi) 0,16" V=1.96"
MAX.BENDING CAPACITY (81087 psi) 0,16" V=1.96"
MAX.BENDING CAPACITY (89622 psi) 0,16" V=1.96"
MAX.BENDING CAPACITY (99580 psi) 0,12" V=1.96"
AXIS NUMBER OF MACHINE Y1,Y2,X,R
FREE DOWN SPEED 6,3 in/s
BENDING SPEED 0,4 in/s
RETURN BACK SPEED 6,5 in/s
STROKE ( C ) ( Y1 , Y2 ) 10,8"
BACK GAUGE STROKE ( X AXIS ) 19,7"
BACK GAUGE STROKE ( R AXIS ) 9,8"
DISTANCE BETWEEN HOUSING ( B ) 66,9"
CROWNING Motorized
THROAT DEPTH ( E ) 16,1"
TABLE HEIGHT ( F ) 35,4"
TABLE WIDTH ( G ) 3,5"
DAYLIGHT ( D ) 20,9"
PLANT VOLTAGE 380 V
IP 54
MAIN MOTOR 10 HP
BACK GAUGE MOTORS (X ,R) 2x2,4 Nm
PLANT TEMPERATURE 0-50 oC
MAX. NOISE 70 dB
OIL CAPACITY 39,6 US Gallons
MAX. PRESSURE 3768,3 psi
MACHINE LENGTH ( L ) 128,0"
MACHINE WIDTH ( W ) 77,2"
MACHINE WIDTH (K) 61,0"
MACHINE HEIGHT ( H ) 108,3"
WEIGHT 11207,34 lbs
