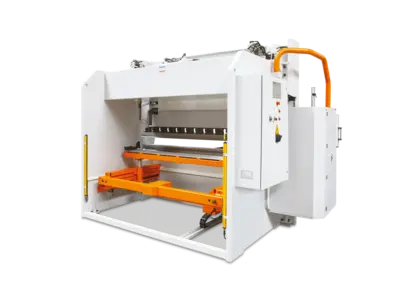

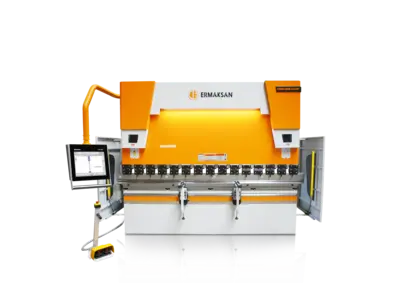

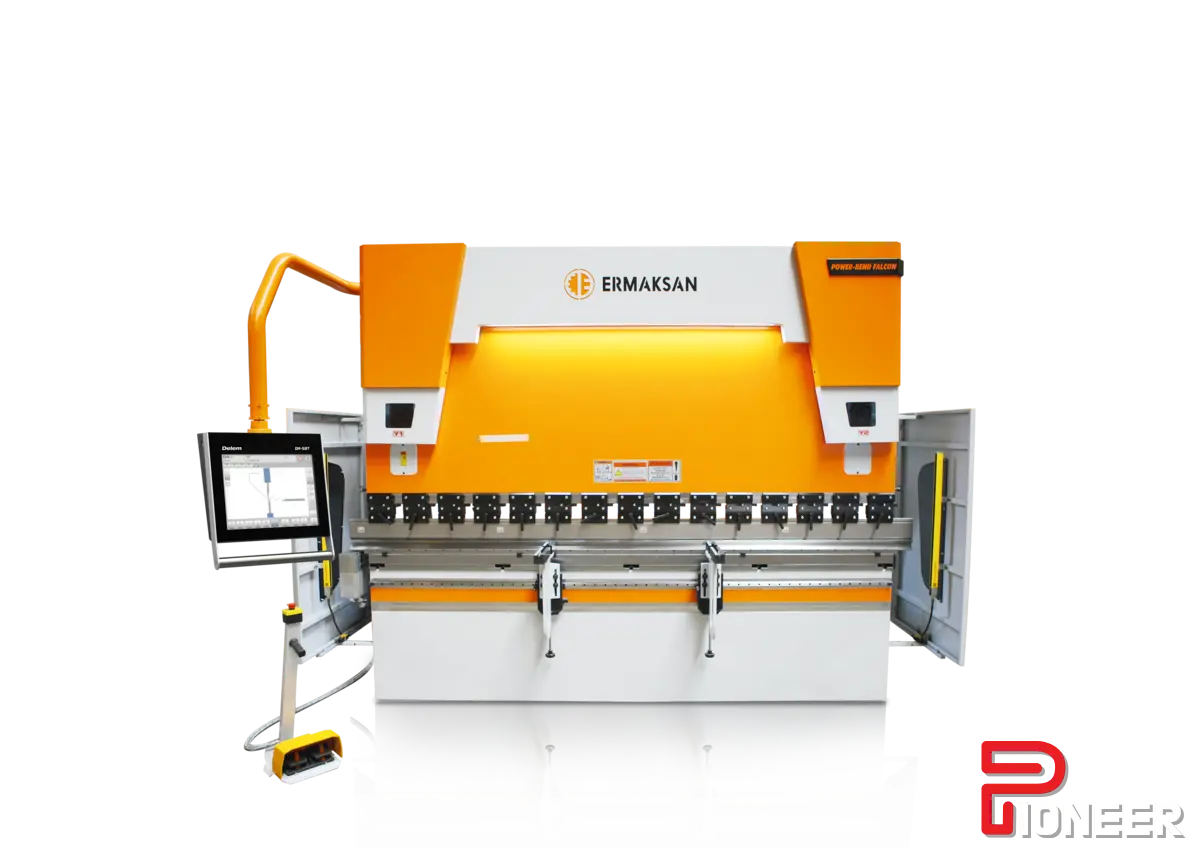

New ERMAKSAN Falcon-Bend 12 Ft x 350Ton w/ Delem 58T | Press Brakes

BENDING LENGTH ( A ) 148.0"
MAX. POWER 352 US Tons
MAX.BENDING CAPACITY (59748 psi) 0.51"
MAX.BENDING CAPACITY (73974 psi) 0.43"
MAX.BENDING CAPACITY (81087 psi) 0.43"
MAX.BENDING CAPACITY (89622 psi) 0.39"
MAX.BENDING CAPACITY (99580 psi) 0.39"
AXIS NUMBER OF MACHINE Y1,Y2,X,R
FREE DOWN SPEED 5.5 in/s
BENDING SPEED 0.4 in/s
RETURN BACK SPEED 5.9 in/s
STROKE ( C ) ( Y1 , Y2 ) 14.8"
BACK GAUGE STROKE ( X AXIS ) 31.5"
BACK GAUGE STROKE ( R AXIS ) 9.8"
DISTANCE BETWEEN HOUSING ( B ) 128.0"
CROWNING MOTORIZED
THROAT DEPTH ( E ) 16.1"
TABLE HEIGHT ( F ) 35.4"
TABLE WIDTH ( G ) 8.7"
DAYLIGHT ( D ) 25.6"
PLANT VOLTAGE 230 or 460V
IP 54
MAIN MOTOR 40 HP
BACK GAUGE MOTORS (X ,R) 2x2,4 Nm
PLANT TEMPERATURE 0-50ºC
MAX. NOISE 70 dB
OIL CAPACITY 106 US Gallons
MAX. PRESSURE 3697 psi
MACHINE LENGTH ( L ) 201"
MACHINE WIDTH ( W ) 96"
MACHINE WIDTH (K) 77"
MACHINE HEIGHT ( H ) 124"
WEIGHT 44746 lbs
