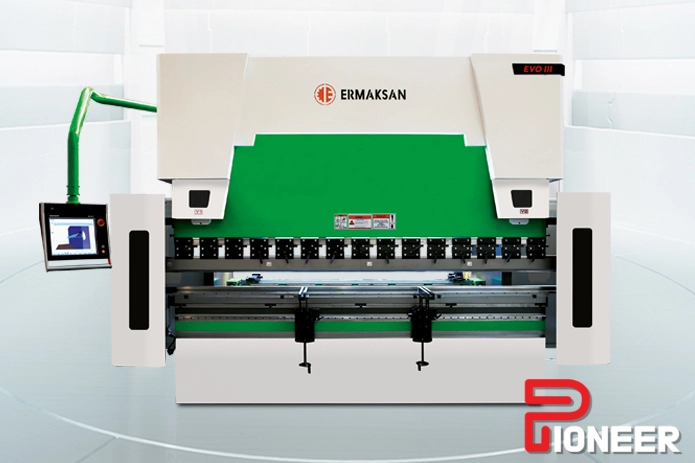

ERMAKSAN EVO III 14Ft x 242T w/ Delem 69T Controller

BENDING LENGTH ( A ) 168"
MAX. POWER 242 US Tons
MAX.BENDING CAPACITY (59738 psi) 0.31"
AXIS NUMBER OF MACHINE Y1,Y2,X,R,Z1,Z2
FREE DOWN SPEED 7.76 in/s
BENDING SPEED 0.39 in/s
RETURN BACK SPEED 6.85 in/s
STROKE ( C ) ( Y1 , Y2 ) 10.83"
BACK GAUGE STROKE ( X AXIS ) 31.50"
BACK GAUGE STROKE ( R AXIS ) 9.84"
DISTANCE BETWEEN HOUSING ( B ) 148.82"
CROWNING MOTORIZED
THROAT DEPTH ( E ) 16.14"
TABLE HEIGHT ( F ) 35.43"
TABLE WIDTH ( G ) 6.30"
DAYLIGHT ( D ) 21.65"
PLANT VOLTAGE 380V 50 HZ V
IP 54 -
MAIN MOTOR 2x12.328 HP
BACK GAUGE MOTORS (X,R,Z1,Z2) 2x2,4+2x1,27 Nm
PLANT TEMPERATURE 0-50 oC
MAX. NOISE 70 dB
OIL CAPACITY 2x14.5 US Gallons
MAX. PRESSURE 4118 psi
MACHINE LENGTH ( L ) 209"
MACHINE WIDTH ( W ) 89"
MACHINE HEIGHT ( H ) 118"
WEIGHT 30856 lbs

MAX.BENDING CAPACITY (73974 psi) 0.28 "
MAX.BENDING CAPACITY (81087 psi) 0.28 "
MAX.BENDING CAPACITY (89622 psi) 0.24 "
MAX.BENDING CAPACITY (99580 psi) 0.24 "
