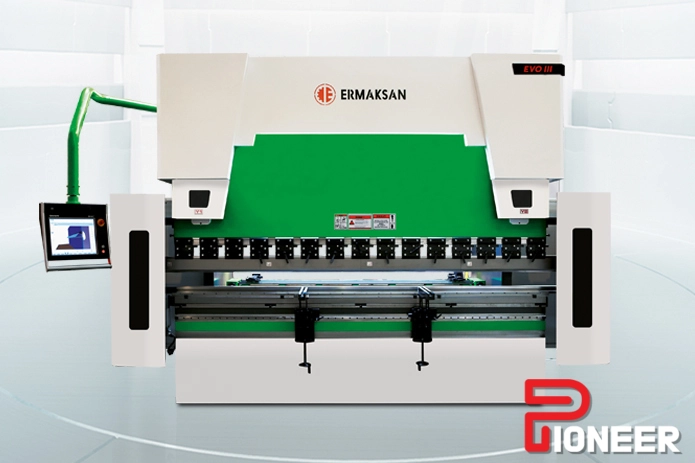

ERMAKSAN EVO-III 10Ft x 242 Ton Hybrid w/ Delem 69T Controller
Unavailable

ERMAKSAN EVO-III 10Ft x 242 Ton Hybrid w/ Delem 69T Controller

Press Brakes
Manufacturer:
ERMAKSAN
Model:
EVO-III 10' x 242T (3100-220) Hybrid
Condition:
Build To Order
Stock #:
41004001345601
ERMAKSAN EVO-III 10Ft x 242 Ton Hybrid Press Brake w/ Delem 69T Controller; new condition. Key specs: 122.5" length, 102.36" between housings, 242T max tonnage, 10.83" stroke, 6-axis, motorized crowning, 16.14" throat depth. Includes Xprime back gauge, Laser Safe, and CNC crowning.
Tonnage242 T219.539 t
Overall Length122.5"3.1 m
Between Housings102.36"2.6 m
Stroke10.83"275.08 mm
# Axis66
ControlCNC (Delem 69T)CNC (Delem 69T)
Dimensions179.13" x 88.58" x 112.20"179.13" x 88.58" x 112.20"
Weight24,874.344 lbs24,874.344 lbs

BENDING LENGTH ( A ) 122.05"
MAX. POWER 242 US Tons
MAX.BENDING CAPACITY (59738 psi) 0.43" V= 4.33"
MAX.BENDING CAPACITY (73974 psi) 0.39" V= 4.33"
MAX.BENDING CAPACITY (81087 psi) 0.35" V= 4.33"
MAX.BENDING CAPACITY (89622 psi) 0.35" V= 4.33"
MAX.BENDING CAPACITY (99580 psi) 0.31" V= 4.33"
AXIS NUMBER OF MACHINE Y1,Y2,X,R,Z1,Z2
FREE DOWN SPEED 7.76 in/s
BENDING SPEED 0.39 in/s
RETURN BACK SPEED 6.85 in/s
STROKE ( C ) ( Y1 , Y2 ) 10.83"
BACK GAUGE STROKE ( X AXIS ) 31.50"
BACK GAUGE STROKE ( R AXIS ) 9.84"
DISTANCE BETWEEN HOUSING ( B ) 102.36
CROWNING MOTORIZED
THROAT DEPTH ( E ) 16.14"
TABLE HEIGHT ( F ) 35.43"
TABLE WIDTH ( G ) 7.87"
DAYLIGHT ( D ) 21.65"
PLANT VOLTAGE 380V 50 HZ V
IP 54
MAIN MOTOR 2x13.668 HP
BACK GAUGE MOTORS (X,R,Z1,Z2) 2x2.4+2x1.27 Nm
PLANT TEMPERATURE 0-50 oC
MAX. NOISE 70 dB
OIL CAPACITY 2x14.51 US Gallons
MAX. PRESSURE 4052.7 psi
MACHINE LENGTH ( L ) 179.13"
MACHINE WIDTH ( W ) 88.58"
MACHINE HEIGHT ( H ) 112.20"
WEIGHT 24874.344 lbs

Evo-III Hybrid
Xprime Back Gauge
Delem 69T
Laser Safe Front Safety
Tooling
CNC Crowning
