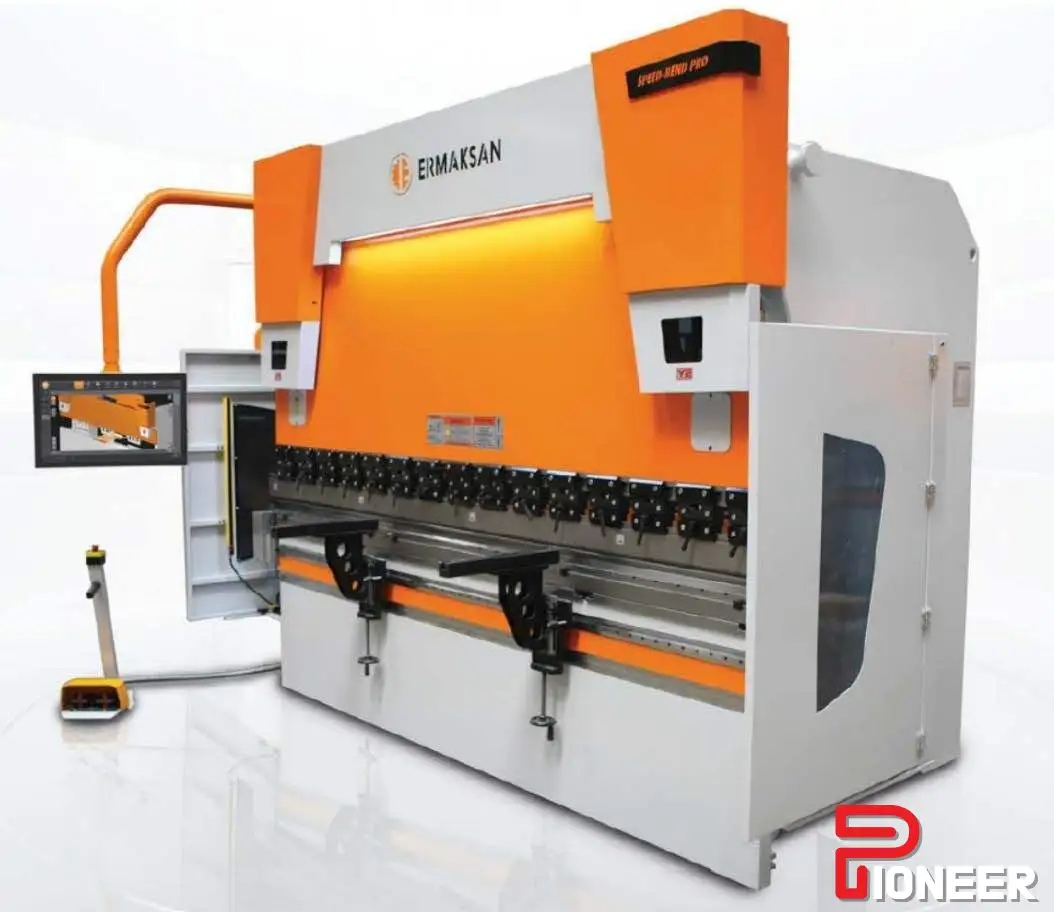

Ermaksan Speed Bend 6 Ft x 110T w/ Delem 66 Controller

SPEED BEND PRO 6.88'-110 TECHNICAL FEATURES

BENDING LENGTH ( A ) 82.68"
MAX. POWER 110 US Tons
MAX.BENDING CAPACITY (59738 psi) 0.24"
MAX.BENDING CAPACITY (73974 psi) 0.20"
MAX.BENDING CAPACITY (81087 psi) 0.20"
MAX.BENDING CAPACITY (89622 psi) 0.20"
MAX.BENDING CAPACITY (99580 psi) 0.16"
AXIS NUMBER OF MACHINE Y1,Y2,X,R,Z1,Z2
FREE DOWN SPEED 6.30 in/s
BENDING SPEED 0.37 in/s
RETURN BACK SPEED 6.10 in/s
STROKE ( C ) ( Y1 , Y2 ) 10.83"
BACK GAUGE STROKE ( X AXIS ) 31.50"
BACK GAUGE STROKE ( R AXIS ) 9.84"
DISTANCE BETWEEN HOUSING ( B ) 66.93"
CROWNING Motorized
THROAT DEPTH ( E ) 16.14"
TABLE HEIGHT ( F ) 35.43"
TABLE WIDTH ( G ) 3.54"
DAYLIGHT ( D ) 20.87"
PLANT VOLTAGE 380V
IP 54
MAIN MOTOR 15HP
BACK GAUGE MOTORS (X,R,Z1,Z2) 2x2,4+2x1,27 Nm
PLANT TEMPERATURE 0-50ºC
MAX. NOISE 70dB
OIL CAPACITY 52.84 US Gallons
MAX. PRESSURE 3555 psi
MACHINE LENGTH ( L ) 151.57"
MACHINE WIDTH ( W ) 80.31"
MACHINE HEIGHT ( H ) 100.79"
WEIGHT 13003.6 lbs
