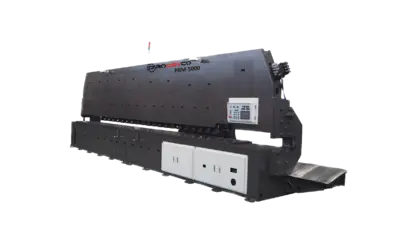

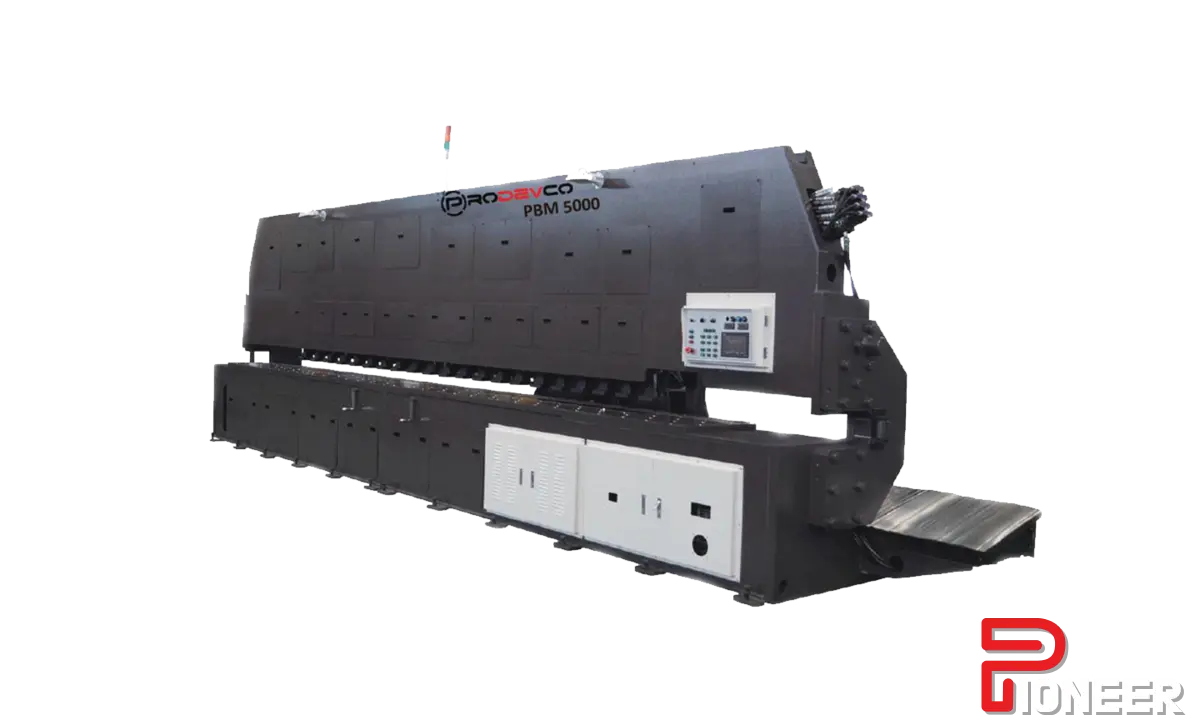

New PRODEVCO INDUSTRIES PMB 5000 | Bevelers
Have one to sell?
ConditionNew
New
Plate beveling machines are used to create beveled edges on metal plates, which is crucial for welding and fabrication processes.
The main features of our plate beveling machine include:
• Upper and lower cut beveling done simultaneously
• 2 adjustable milling heads for beveling
• Changeable tungsten carbide cutting insert
• Capable of beveling up to 70°
• Digital control bevel angle
Max plate length for beveling: 197″/5,000mm
Capacity 01: O~70°
Capacity Ø2: O~60°
Capacity T: Max. 2″/60mm
Capacity C1:Max. 3/4″/18mm (when 0=45°)
Capacity C2: Max. 3/4″/18mm (when 0-45°)
Cutting speed: 4″-29″/min/100-750 mm/min
Clamp: 21 set
Dimension (L*W*H): 340″x74″x100″ / 8630x1870x2540mm
Weight: 36,370lb/16,500kg
