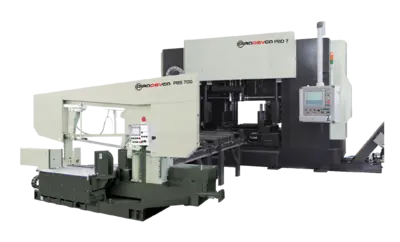

New PRODEVCO INDUSTRIES PBS 700 and PBD 7 | Horizontal Band Saws
Have one to sell?
ConditionNew
New
Our Tandem Drill and Band Sawing Systems are designed for high efficiency drilling and processing while simultaneously cutting various materials
The main features include:
• Optimizes workspace, uses one operator to simultaneously control drilling and cutting
• Fast drilling with tungstan carbide drill
• Spindle movement in X direction (Beam length direction)
• Fast and precise material feeding by servo system
• Automatic cutting of both angles(-45° +60°)
Section Size (Min): 5″x2-1/2″ (125x65mm)
Section Size (Max): 28″x16″ (700x400mm)
Drilling head (no.): 3
Drill Bit Capacity: 1/2″ to 1-1/4″ (12 to 32mm)
Automatic Tool Changer (Option): 4 set per axis
Spindle Power: 12 HP (15 kw)
Spindle Sub Axis Stroke: 12″ (300mm)
Double Miter Cutting: -45°, +60°
Blade Speed: 65-300 ft/min
Machine Weight: 29,260 lb (13,300 kg)
