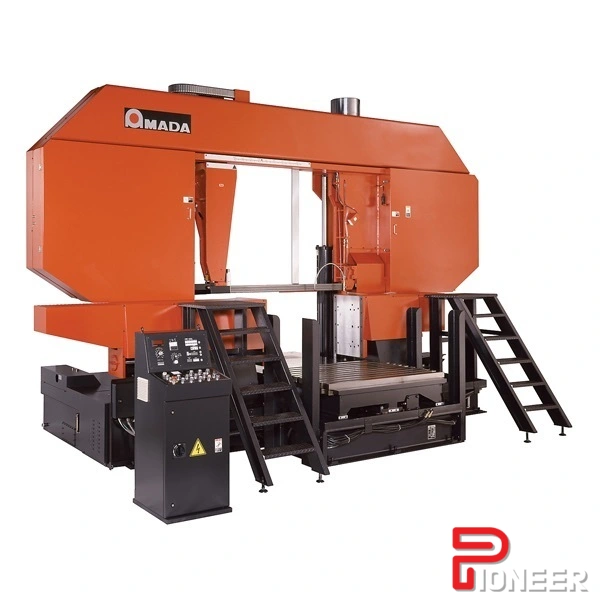

AMADA H-2116II HORIZONTAL BILLET SAW

Cutting Capacity:
Round (Diameter) 23.62″ – 63″ 600 – 1600 mm
Rectangle (W x H) 23.62″ x 23.62″ – 82.68″ x 63″ 600 x 600 mm – 2100 x 1600 mm

Work Load Capacity 88,200 lbs 40,000 kg

Saw Blade:
Blade Size (L x T x W) 54’2″ x 0.063″ x 3″ 16500 x 1.6 x 80 mm
Blade Speed 39.4 – 196.8 ft/min by Inverter 12-60 m/min by Inverter
Tension Control Hydraulic

Blade Control:
Top Limit Setting Automatic Setting with Quick Approach Feeler
Cutting Control CNC-Light, Hydraulic Flow Control Valve with Stepping Motor

Vise Operation:
Type Single Vise
Control Hydraulic Full-Stroke Cylinder

Motors:
Saw Blade 20 HP 15 kW
Hydraulic Pump 7.5 HP 5.5 kW
Cutting Fluid Pump 1/4 HP 0.4 kW

Power Requirement:
Power Supply Voltage AC220V±10%, 3 PH, 60 Hz All Other Voltages Require Transformer
Power Requirement 32 kVA

Cutting Fluid:
Tank Capacity 92 gal 350 liters
Pump Type Electric

Hydraulic:
Tank Capacity 66 gal 250 liters
Pressure Setting 1045 psi 7.5 MPa (73.5 kgf/cm2)

Chip Disposal Chip Conveyor

Material Index:
Index Mechanism Table Feed, Manual Operation
Stroke 70.9″ by Hydraulic 1800 mm by Hydraulic
Length N/A
Number of Input Station N/A
Number of Cut-Off Pieces N/A
Remnant Length N/A

Machine Dimensions (W x L x H):
Head-Up Position 311.5 x 190 x 207.7″ 7912 x 4810 x 5276 mm
Head Down Position 311 x 190 x 169.8″ 7912 x 4810 x 4314 mm

Table Height 32.5″ 825 mm

Machine Weight 66,200 lbs 30,000 kg
