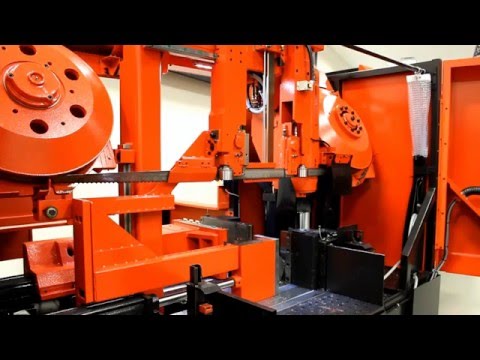

AMADA DYNASAW 430 HORIZONTAL POST STYLE SAW
Have one to sell?
ConditionNew
New
High-Performance CNC Band Saw
• 7.5 H.P.
• 1-1/2″ Blade
• Non-Contact Material Positioning
• Smart Blade Change Feature
FEATURES
• Dynamic Frame
- A highly rigid frame that incorporates a newly engineered dual post system
• New CNC Control
- Very easy to use and greatly reduces setup time.
- Three different cutting modes for maximum efficiency: “Eco-mode”, “Standard-mode”, and “Power mode”.
• Double Vibration Dampening Rollers
- Double rollers reduce vibration resulting in faster and quieter cutting while improving blade life.
• New Saw Blade Frame Design
- Longer blade life by reducing the twist in the blade, fatigue is greatly reduced leading to longer blade life.
• Automatically Adjusting Wire Brush
• Open Top, Longer Feed Stroke Vise
• Non-Contact Material Positioning
• Smart Blade Change Feature
• Chip Flusher to Facilitate Machine Up Time
• Burr Removal Through Uniquely Designed Table
• Auto Trim Function Using a Laser to Detect Material Position
Cutting Capacity:
Round (Diameter) 1.18″ – 16.93″ 30-430 mm
Rectangle (W x H) 1.18″ x 1.18″ – 16.93″ x 16.93″ 30 x 30 – 430 x 430 mm
Work Load Capacity 6,613 lbs 3,000 kg
Saw Blade:
Blade Size (L x T x W) 17’5″ x 0.050″ x 1-1/2″ 5300 x 1.3 x 41mm
Blade Speed 49-394 ft/min by Inverter 15-120 m/min by Inverter
Tension Control Hydraulic
Blade Control:
Top Limit Setting Automatic Setting with Quick Approach Feeler
Cutting Control CNC Control, Hydraulic Flow Control Valve with Stepping Motor
Vise Operation:
Type Front, Main, Rear Vises
Control Hydraulic Full-Stroke Cylinder
Motors:
Saw Blade 7.5 HP 5.5 kW
Hydraulic Pump 2 HP 1.5 kW
Wire Brush 1/8 HP 0.09 kW
Cutting Fluid Pump 1/4 HP 0.18 kW
Power Requirement:
Power Supply Voltage AC220V±10%, 3 PH, 60 Hz
All Other Voltages Require Transformer
Power Requirement 13 kVA
Cutting Fluid Tank Capacity:
33 gal 125 liters
Pump Type Centrifugal Electric
Pump Capacity 2.6 gal/min 10 L/min
Hydraulic:
Tank Capacity 5.3 gal 20 liters
Pump Type Vane Pump
Pressure Setting 508 psi 3.5 MPa (35 kgf/cm2)
Chip Disposal Automatic Hydraulic Screw-Type Chip Conveyor
Material Index:
Index Mechanism Shuttle Vise
Stroke 27.559″ 700 mm
Length 0.394″ – 99.999″ 10-9999.9 mm
Number of Input Block/Station 1-99 / 1-30
Number of Cut-Off Pieces 1-9999
Remnant Length 1.38″ Plus Length of Parts 35 mm Plus Length of Parts
Machine Dimensions (W x L x H):
Head-Up Position 99.2″ x 85.8″ x 79.5″ 2520 x 2180 x 2020 mm
Head Down Position 99.2″ x 85.8″ x 79.5″ 2520x 2180 x 2020mm
Table Height 27.6″ 700 mm
Machine Weight 7718 lbs 3500 kg
