AMADA CMII75DG CARBIDE CIRCULAR SAW
Have one to sell?
ConditionNew
New
New Dyna Guide Technology Enables Excellent Cutting
• 14.7 HP
• Dyna Guide
• CNC Control
• Incline Table
• Chip Conveyor
• Cut Piece Counter
• Self-Diagnostics
• Anti-Backlash Device
• Sorting Device
FEATURES
• High Productivity
- Dyna Guide, a new technology, reduces the undulation on the cutting surface by increasing the rigidity when circular saw blade engages the material. Moreover, Dyna Guide achieves high precision cutting by suppressing vibration and swinging of circular saw blade.
- Adopts horizontal linear guide system for new saw head mechanism.

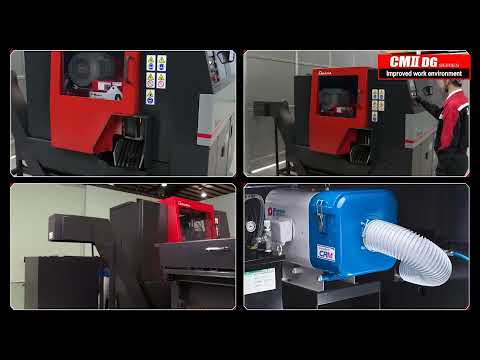

• Improvement of Work Environment
- Round bar shooter can be reduced thus reducing the chips mixed into the product box.
- The new sliding door feature for the front cover, reduces the work space.
Cutting Capacity:
Round (Diameter) 0.394″ – 3.0″ 10 – 76.3 mm
Rectangle (W x H) 0.394″ x 0.394″ – 2.55″ x 2.55″ 10 x 10 – 65 x 65 mm
Maximum Stock Table Loading Capacity, Round Bars (L x D)
19.6 ft. x 3.0″ x 10 bars Or 4761 lbs. (*1) 6000 x 76.3 mm x 10 bars Or 2160 kg. (*1)
Incline Table Dimensions (L x W x H)
20’4” x 72.6″ x 63″ 6194 x 1844 x 1600 mm

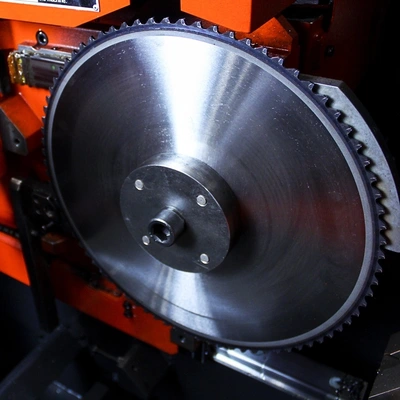

Saw Blade:
Number of Teeth 60, 80, 120, or 140
OD x Bore x T 11.2″ x 1.57″ x 0.08″ 285 x 40 x 2.0 mm
Blade Speed 50-180 RPM by Inverter
Motors:
Saw Blade 14.7 HP 11 kW
Saw Head Feed 2.75 HP Servo Motor 2.0 kW Servo Motor
Hydraulic Pump 2 HP 1.5 kW
Cut-to-Length Feed 1 HP Servo Motor 0.8 kW Servo Motor
Power Requirement:
Power Supply Voltage AC220V±10%, 3 PH, 60 Hz
All Other Voltages Require Transformer
Power Requirement 24 kVA
Air Requirements:
Air Pressure 72.5 psi 0.5 MPa
Air Flow Rate 64.6 gal/min 245 L/min
Hydraulic Tank Capacity 7.93 gal 20 liters
Oil Mist Tank Capacity 0.4 gal 1.5 liters
Material Index:
Index Mechanism Shuttle Vise
Material Index AC Servo Motor & Ball Screw
Stroke 28.1″ 715 mm
Length 0.394″-393.70″ Multiple Indexing 10-9999.99 mm Multiple Indexing
End Trimming Length 0.394″-3.9″ 10-99 mm
Remnant Length 1.97″ Plus Length of Parts 50 mm Plus Length of Parts
Machine Dimensions (W x L x H) 65.0″ x 82.3″ x 64.2″ 1650 x 2100 x 1630 mm
Table Height 35.4″ 900 mm
Machine Weight 4,409 lbs 2,000 kg
*1: Evenly Distributed Over Entire Table
