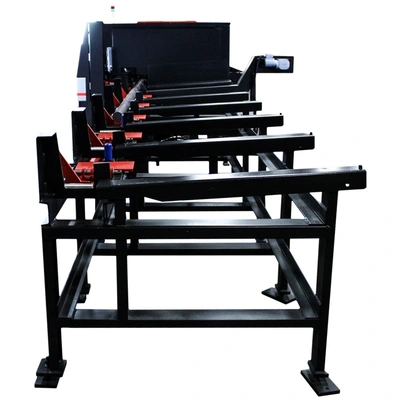

AMADA CMII100DG CARBIDE CIRCULAR SAW

Cutting Capacity
Round (Diameter) 0.787″ – 4.0″ 20 – 101.6 mm
Rectangle (W x H) 0.787″ x 0.787″ – 3.15″ x 3.15″ 20 x 20 – 80 x 80 mm

Maximum Stock Table Loading Capacity, Round Bars (L x D)
19.6′ x 4.0″ x 10 bars or 8511 lbs (*1) 6000 x 101.6 mm x 10 bars or 3860 kg (*1)

Incline Table Dimensions (L x W x H)
17.55′ x 53.9″ x 44.3″ 5350 x 1370 x 1125 mm

Saw Blade:
Number of Teeth 60, 80, or 100
OD x Bore x T 14.2″ x 1.57″ x 0.102″ (0.098″) 360 x 40 x 2.6 (2.5) mm
Blade Speed 50-180 RPM by Inverter or 50-250 RPM by Inverter

Motors:
Saw Blade 20.1 HP 15 kW
Saw Head Feed 2.6 HP Servo Motor 2.0 kW Servo Motor
Hydraulic Pump 3 HP 2.2 kW
Cut-to-Length Feed 1.3 HP Servo Motor 1.0 kW Servo Motor

Power Requirement:
Power Supply Voltage AC220V±10%, 3 PH, 50/60 Hz or AC220V±10%, 3 PH, 60 Hz
All Other Voltages Require Transformer
Power Requirement 30 kVA or 38 kVA

Air Requirements:
Air Pressure 72.5 psi 0.5 MPa
Air Flow Rate 64.6 gal/min 245 L/min

Hydraulic Tank Capacity 8.0 gal 30 liters

Oil Mist Tank Capacity 0.47 gal 1.8 liters

Material Index:
Index Mechanism Shuttle Vise
Material Index AC Servo Motor & Ball Screw
Stroke 28.3″ 719 mm
Length 0.394″-393.70″ Multiple Indexing 10-9999.99 mm Multiple Indexing
End Trimming Length 0.394″-3.9″ 10-99 mm
Remnant Length 1.97″ Plus Length of Parts 50 mm Plus Length of Parts

Machine Dimensions (W x L x H) 65.0″ x 82.3″ x 64.2″ 1650 x 2100 x 1630 mm

Table Height 35.4″ 900 mm

Machine Weight 5,513 lbs 2,500 kg

*1: Evenly Distributed Over Entire Table
