AMADA SA330WPC HORIZONTAL MITERING SAW

Description

The Vision of Precision

• 5 H.P.
• 1” Blade
• Heavy-Duty
• Hydraulic
• Metal Cutting

FEATURES
• Hydraulic Down Feed
- Feed rate and down pressure can be controlled for fast, accurate cutting. Setup is made easy through the color-coded dial allowing the operator to select the optimum setting for the type of material being cut. Both settings are made at the operator’s station.

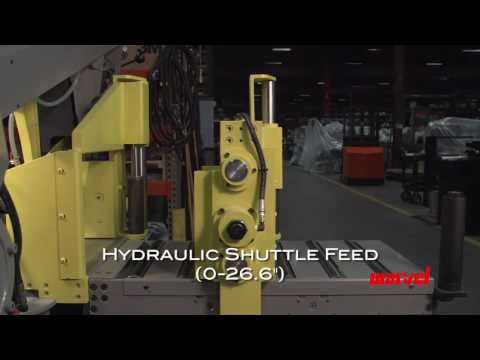

• Hydraulic Shuttle Feed
- Length settings of 0-27.56” (0-700mm) are accomplished with simple programming at the operator’s touch screen. The shuttle comes to positive stops at both ends of the index, assuring cutoff length accuracy, reducing material loss. Repeatability is + .005” per index.
• PC Programmable Control
- Conveniently located on the operator’s control panel, this touch screen control allows the operator to program and store up to ten jobs. Inputs include Part Length from 0-999.999” and the Number of Pieces to be cut. The Blade Speed is displayed on and set using the touch screen but is not stored in memory. The Automatic Piece Counter stops each job when the pre-set number of cuts has been made.
• Out-of-Stock Switch
- The machine will shut off automatically when the material is no longer present in the rear vise jaws, allowing for truly automatic operation.
• Full Stroking Hydraulic Vise Jaws
- Hydraulic vices hold the work piece, providing accurate cuts and longer blade life.
• Shuttle Vise
- The shuttle vise jaw floats hydraulically to accommodate crooked stock assuring straight, accurate cuts. The remnant length is 9.5” (241 mm).
