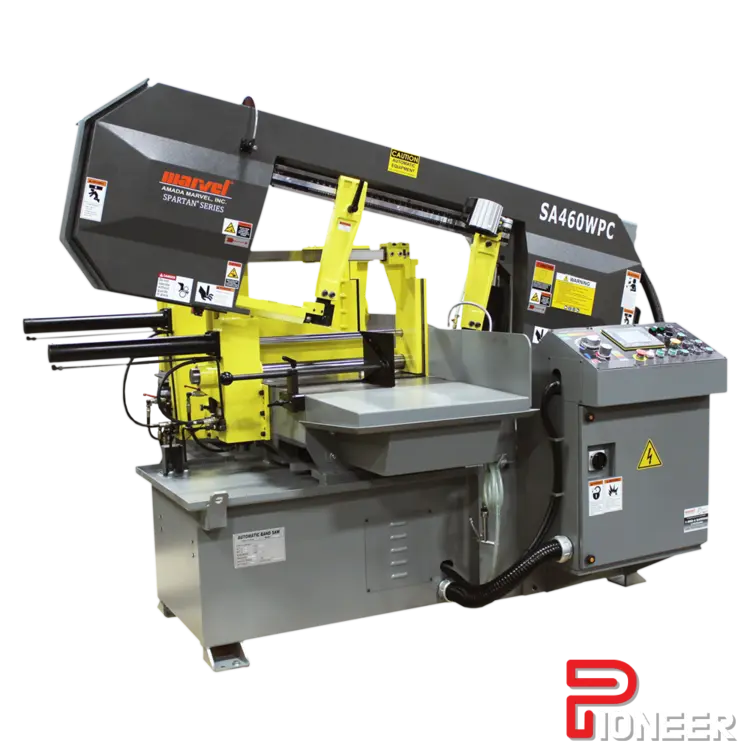

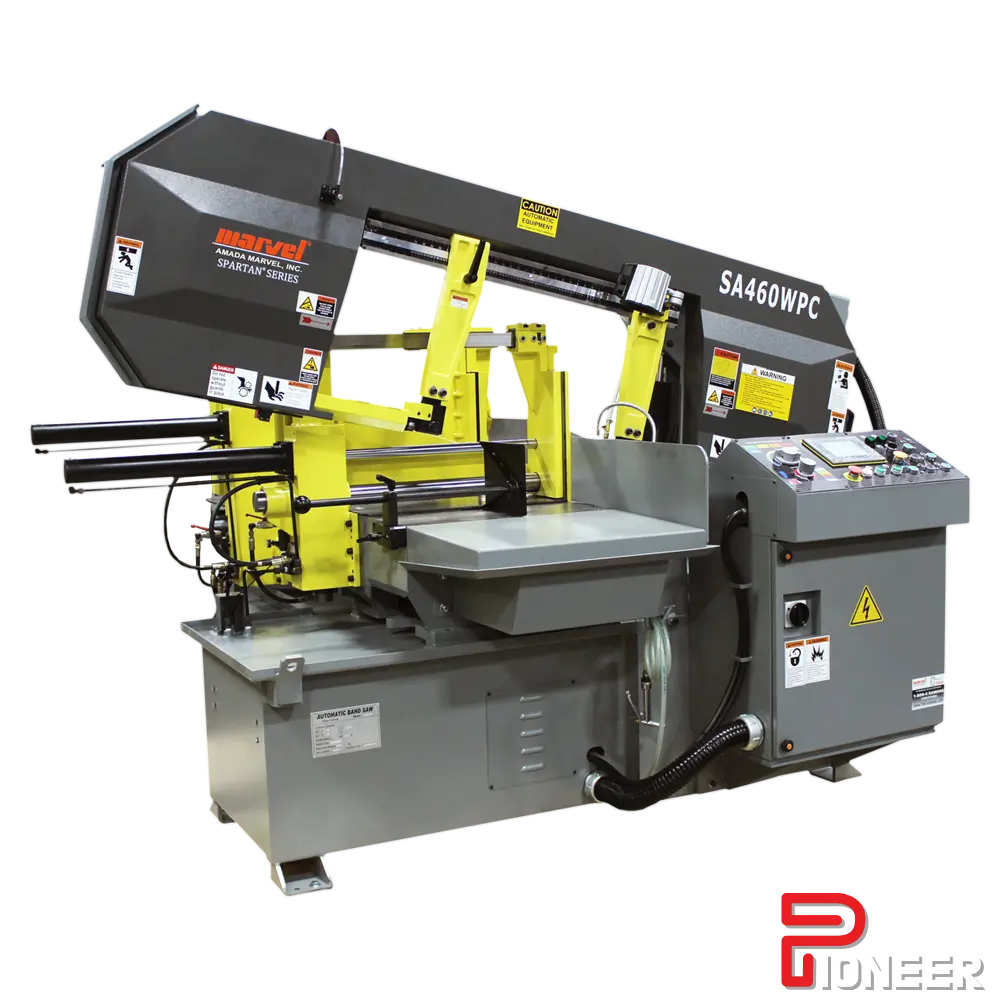

AMADA SA460WPC HORIZONTAL MITERING SAW
Have one to sell?
ConditionNew
New
The Vision of Precision
• 5 H.P.
• 1.5” Blade
• Heavy-Duty
• Hydraulic
• Metal Cutting
FEATURES
• Hydraulic Down Feed
- Feed rate and down pressure can be controlled for fast, accurate cutting. Setup is made easy through the color-coded dial allowing the operator to select the optimum setting for the type of material being cut. Both settings are made at the operator’s station.
• Hydraulic Shuttle Feed
- Length settings of 0-27.56” (0-700mm) are accomplished with simple programming at the operator’s touch screen. The shuttle comes to positive stops at both ends of the index, assuring cutoff length accuracy, reducing material loss. Repeatability is + .005” per index.
• PC Programmable Control
- Conveniently located on the operator’s control panel, this touch screen control allows the operator to program and store up to ten jobs. Inputs include Part Length from 0-999.999” and the Number of Pieces to be cut. The Blade Speed is displayed on and set using the touch screen but is not stored in memory. The Automatic Piece Counter stops each job when the pre-set number of cuts has been made.
• Out-of-Stock Switch
- The machine will shut off automatically when the material is no longer present in the rear vise jaws, allowing for truly automatic operation.
• Full Stroking Hydraulic Vise Jaws
- Hydraulic vices hold the work piece, providing accurate cuts and longer blade life.
• Shuttle Vise
- The shuttle vise jaw floats hydraulically to accommodate crooked stock assuring straight, accurate cuts. The remnant length is 9.5” (241 mm).
Cutting Capacity:
Round (Diameter) at 90° 18″ 460 mm
Round (Diameter) at 45° 15″ 380 mm
Rectangle (W x H) at 90° 24″ x 15″ 23″ Max x 18″ 610 x 380mm 580 Max x 460 mm
Square at 90° 18″ x 18″ 460 x 460 mm
Rectangle (W x H) at 45° 15″ x 15″ 380 x 380 mm
Work Load Capacity
Blade Saw:
Blade Size (L x T x W) 18’10” x 0.050″ x 1-1/2″ 5730 x 1.3 x 41 mm
Blade Speed 65-330 ft/min by Inverter 20-100 m/min by Inverter
Tension Control Hydraulic
Blade Control:
Top Limit Setting Manual Setting
Cutting Control Hydraulic Flow Control Valve
Vise Operation:
Type Main and Rear Vise
Control Hydraulic Full-Stroke Cylinder
Motors:
Saw Blade 5 HP 3.7 kW
Hydraulic Pump 1/2 HP 0.37 kW
Cutting Fluid Pump 1/8 HP 0.06 kW
Power Requirement:
Power Supply Voltage AC230V±10%, 3 PH, 60 Hz,
Required at Factory Voltage Setting
Power Requirement
Cutting Fluid Tank Capacity 14.5 gal 55 liters
Hydraulic:
Tank Capacity 4.0 gal 15 liters
Pressure Setting
Chip Disposal Chip Conveyor
Material Index:
Index Mechanism Shuttle Vise
Stroke 27.56″ 700 mm
Length 0.5″-393.7″ 13-9999.9 mm
Number of Input Block/Station 10
Number of Cut-Off Pieces 1-999
Remnant Length 11″ plus length of parts 280 mm plus length of parts
Machine Dimensions (W x L x H)
Head-Up Position 110.5″ x 94.3″ x 110.2″ 2807 x 2395 x 2800 mm
Head Down Position 110.5″ x 94.3″ x 65.5″ 2807 x 2395 x 1665 mm
Table Height 36.4″ 925 mm
Machine Weight 4,740 lbs 2,150 kg
