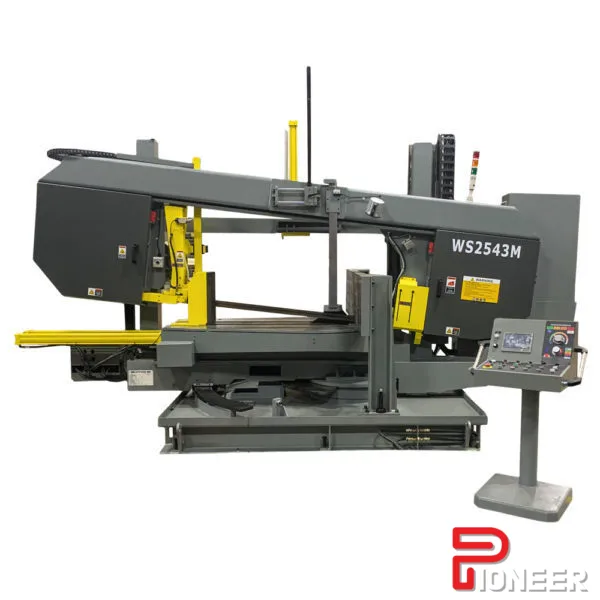

AMADA WS2543M HORIZONTAL MITERING SAW

Description

The Vision of Precision

• 10 H.P.
• 2” Blade
• Heavy-Duty
• Hydraulic
• Metal Cutting

FEATURES
• Saw Frame
- The saw frame is canted at a 6.5-degree angle for faster cutting of structural and other flat materials. The heavy-duty saw frame rides up and down a linear way guide system.
• Miter Cutting
- The WS2543M model has a saw base that swivels to 45 degrees one direction and 60 degrees the other, for miter cutting. A ½ hp (400 W.) motor turns the machine base and the degree of angle is read out on a LED DISPLAY.
• Speed Range
- 98-361 FPM (30-110m/min.). Infinitely variable through a frequency inverter system and a heavy-duty Worm Gear
Transmission. The broad speed range allows for optimum cutting of a large spectrum of materials. An Electric Tachometer assures accurate speed settings.
• Hydraulic Down Feed
- Feed rate and down pressure can be controlled for fast, accurate cutting. Setup is made easy through the color-coded dial allowing the operator to select the optimum setting for the type of material being cut.
• Blade Guides
- A combination of roller bearing and hydraulically actuated carbide blade guides assure the blade is held taut for fast, accurate cuts. The cast iron Movable Guide Arm is positioned through a Hydraulic Cylinder, then is Hydraulically Locked in position.
• Fast Approach
- Work height is manually set allowing the head to raise just enough to clear the workpiece, reducing cycle time
and allowing for faster cutting performance.
• Chip Brush
- An Independent Motor drives the blade cleaning Chip Brush to assure complete removal of chips from each gullet of
the blade, providing optimum cutting performance and enhanced blade life.
• Vise Jaw
- Full Stroking Vise Jaw and a Vertical Clamp Device assure the workpiece is secure and eliminates excessive vibration during the cut providing better blade life and cleaner cuts. Minimum Clamping Capacity is 7.5” (190mm) width.
• Controls
- An Independent Electric Cabinet and Control Panel allow the operator to position the controls for optimum viewing of the cutting area. A PLC controls all electrical and hydraulic functions.
