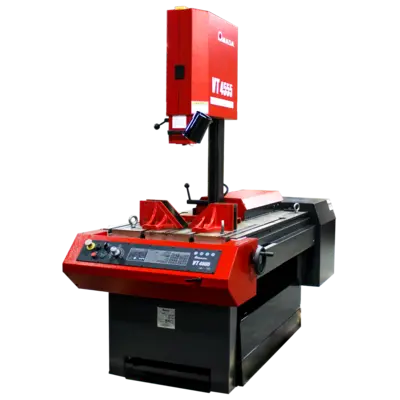

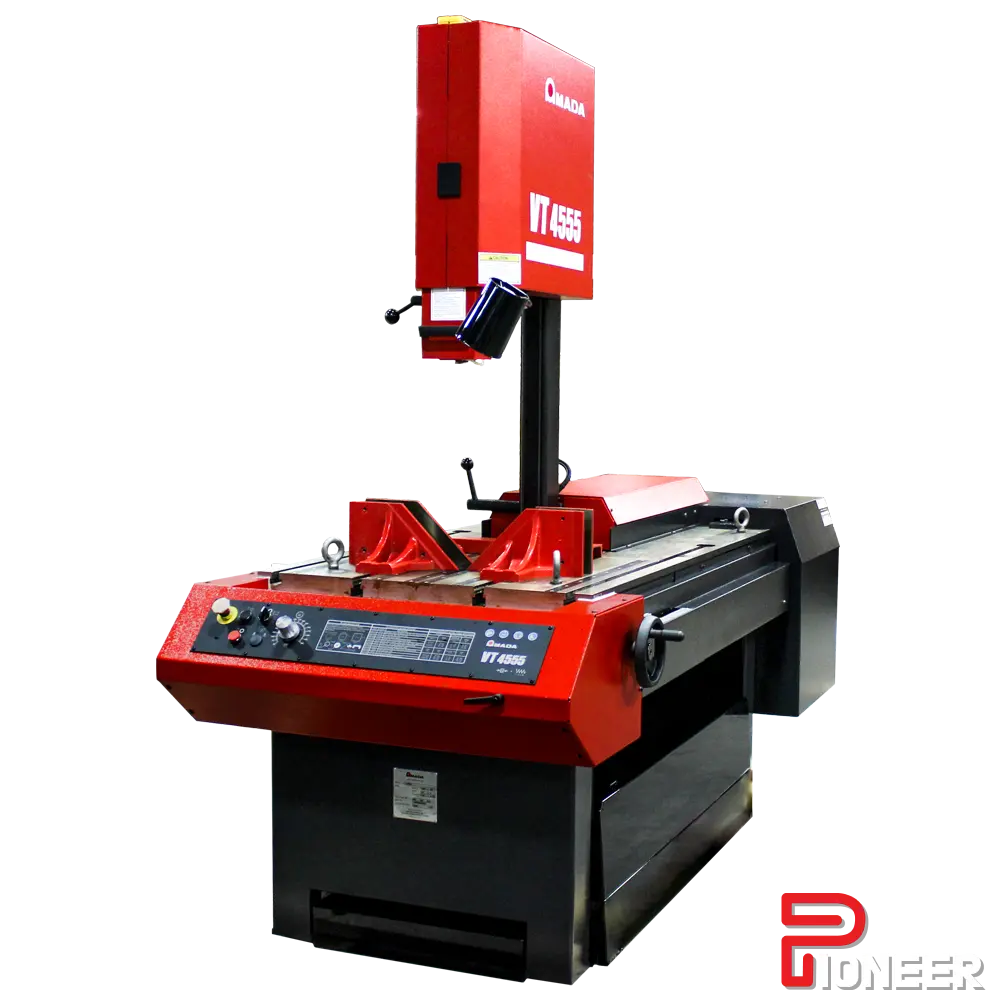

AMADA VT4555 (8-Mark-II) VERTICAL TILT-FRAME SAW
Have one to sell?
ConditionNew
New
The Worlds Most Popular Vertical Tilt-Frame
• 5 H.P.
• 1″ Blade
• Marvel Series (8-Mark-II)
• All-Mechanical Design
• Cast Iron Construction
• Metal Cutting
• Large Adaptable Work Table
FEATURES
• Front Mounted Speed Control
•- Allows blade speed to be adjusted from the operator’s control station.

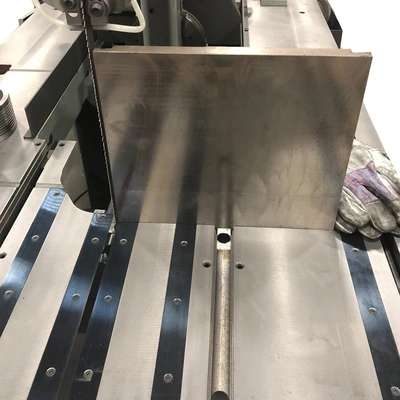

• T-Slotted Work Table
- Work area 24.25” x 33” (616 mm x 838 mm); table height 34.5” (876 mm); four machined T-slots accept .625” (15.5 mm) T-Bolts.
• 0 – 3° Canted Column
- The canted Column is not adjustable and is available in either 0° or optional 3° Cant.
• Miter Cutting
- Column and blade tilt up to 45° right and left.
• Quick Action Vice
- Maximum opening 18” (457 mm). Jaws can be shifted to either right or left side of the blade. Jaws are 6” (152 mm) high, 12” (305 mm) wide.
• Flushing Hose
- Washes chips from hard to get at places reducing clean-up time.
• Power Chip Brush
- Together with blade wipers and flood coolant deep blade teeth free of chips.
• Eagle Beak VTR Blade
- Eagle Beak VTR blade with 3/6 tooth pitch. This is the standard blade that is included with machine purchase.
Cutting Capacity (Standard Column):
Round at 0° (Diameter) 18″ 457mm
Round at 45° (Diameter) 12.75″ 324mm
Rectangle at 0° (W x H) 18″ x 22″ 457 x 560 mm
Rectangle at 45° (W x H) 18″ x 12.75″ 457 x 324 mm
Maximum Vise Opening 20.0″ 500 mm
Work Load Capacity 4996 lb 2267 kg
Saw Blade:
Blade Size (L x T x W) 14’6″x 0.035″ x 1″ 4420 x 0.9 x 27 mm
Blade Speed 50-450 ft/min by Inverter 15-137 m/min by Inverter
Tension Control Pneumatic (tightening by air ratchet)
Blade Control:
Cutting Control Clutch power feed
Blade Feed Force 0 to 140 lbs 0 to 620 N
Motors:
Saw Blade 5 HP 3.7 kW
Cutting Fluid Pump 1/8 HP 0.1 kW
Tilt Gear Motor 1/15 HP 0.05 kW
Power Requirements:
Power Supply Voltage AC230V +- 10% or AC 460V +- 10%
3PH, 60Hz, Required at factory voltage setting
Power Requirement 9.3 kVA
Cutting Fluid:
Tank Capacity 19.8 gal 75 liters
Pump Type Electric
Air Supply:
Air Supply 87 – 145 psi 0.6 – 1.0 MPa
Air Set Pressure 80 psi 0.55 MPa
Chip Disposal Manual
Machine Dimensions (W x L x H) 52.64 x 94.4 x 84.5 (1337 x 2396 x 2146 mm)
Table Height (Above Floor) 34.5″ 876 mm
Machine Weight 2867 lbs 1300 kg
