AMADA VT-4555M (8-MARK-III) VERTICAL TILT-FRAME SAW

Description

The Worlds Most Popular Vertical Tilt-Frame

• 5 H.P.
• 1-1/4″ Blade
• Marvel Series (8-Mark-III)
• All-Mechanical Design
• Cast Iron Construction
• Metal Cutting
• Large Adaptable Work Table
• Semi-Automatic

FEATURES
• Front Mounted Speed Control
- Allows blade speed to be adjusted from the operator’s control station.

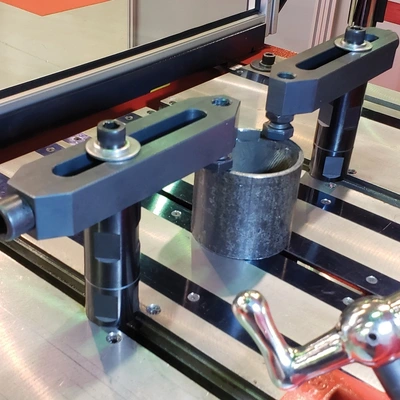

• T-Slotted Work Table
- Work area 24.25” x 33” (616 mm x 838 mm); table height 34.5” (876 mm); four machined T-slots accept .625” (15.5 mm) T-Bolts on our VT4555. Work area 24.25” x 33” (616 mm x 838 mm); Table height 38” (965 mm); Two machined T-slots on our VT4555M.
• 3° Canted Column
- Standard 3° forward approach angle for increased efficiency in cutting structural materials.
• Miter Cutting
- Column and blade tilt up to 60° right and left. Optional Powered Tilt is available.
• Quick Action Vice
- Maximum opening 18” (457 mm). Jaws can be shifted to either right or left side of the blade. Jaws are 6” (152 mm) high, 12” (305 mm) wide.
•Automatic Stops
- Adjustable stops can be pre-set to stop advance and return of blade, and also to stop the motor at any location within the 18” (457 mm) travel of the blade.
• Flushing Hose
- Washes chips from hard to get at places reducing clean-up time.
• Power Chip Brush
- Together with blade wipers and flood coolant deep blade teeth free of chips.
• Eagle Beak VTR Blade
- Eagle Beak VTR blade with 3/6 tooth pitch. This is the standard blade that is included with machine purchase.
