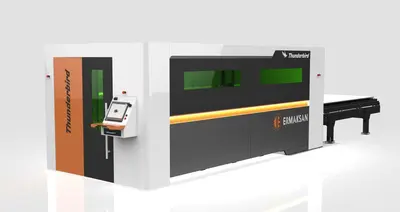

ERMAKSAN Thunderbird 6' x 12' 6kW

RESONATOR Watt YLS 6000
POWER RANGE % 10-100
LASER BEAM QUALITY @ COLLIMATOR mm mrad 1-2
POWER STABILITY % ±0.5
PULSE FREQUENCY RANGE kHz 10
LASER WAVE LENGTH nm 1070 ±10
OUTPUT FIBER CORE DIAMETER μm 100
EXCITATION - Lazer diod
COOLING WATER FLOW RATE Gallon/Min 4.0
CUTTING CAPACITY (High Quality)- -
MILD STEEL (S235JR, S355MC) inch 51/64"
STAINLESS STEEL (AISI 304) inch 3/8"
ALUMINUM (AlMg3) inch 3/8"
BRASS (CuZn37) inch 1/4”
COPPER (Cu-ETP) inch 1/4”
MAXIMUM WORKSHEET DIMENSIONS inch 118.1 X 59
MAXIMUM BURDEN CAPACITY pounds 1550
MACHINE AXES - 4-Axes [X, Y, Z, U ]
AXIAL MOVEMENTS - -
X, U AXES Servo Motorized Table inch 120
Y AXIS Servo Motorized Bridge inch 61
Z AXIS Servo Motorized Cutting Head inch 11.8
ACCELERATIONS
X, U, Y, Z AXES G 1
MAXIMUM AXES VELOCITIES IPM 4175 (simultaneous)( X, Y single axis velocity 2953 inch/min)
POSITIONING ACCURACY inch ± 0,0021
REPETITION ACCURACY inch ± 0,0012
SHUTTLE TABLE (Automatic Loading - Unloading Unit) palette 2 ( 35 sec )
ASSIST GAS
Assist sensor 1 Oxygen - 0,5-6 Bar
Assist sensor 2 Nitrojen 0,5-25 Bar
Assist sensor 3 Dry Air 0,5-25 Bar
CUTTING HEAD Procutter Thunder
CNC BECKHOFF CP 2215
CAD/CAM SOFTWARE Metalix or Lantek
NETWORK CONNECTION Ethernet
OPERATION VIA PANEL15-inch display 1024 x 768, alphanumeric
keyboard, PLC keys on the sides, touch screen keyboard
AVARAGE POWER CONSUMPTION HP 30
MACHINE DIMENSIONS ( L x W x H ) inch 364 X 177 X 86.6
MACHINE WEIGHT pounds 18738
