AGT Robotics Blok 400 - Blok-Heavy
Have one to sell?
ConditionNew
New

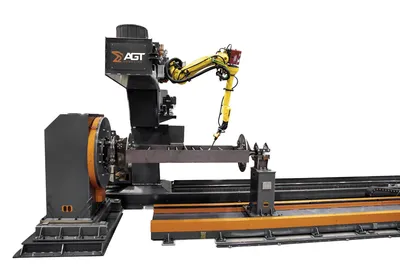

The BLOK 400 is a robust, modular robotic welding system designed specifically for heavy fabrication needs. Its design includes X-axis and Y-axis movement on rails, allowing it to handle larger components efficiently. This advanced setup makes it ideal for fabricating a variety of large structures such as skids, trailers, and frames, providing extensive coverage and precision in complex welding tasks. The BLOK 400 can also be equipped with optional rotation, making it the perfect solution for demanding fabrication environments.
Imperial / Metric
Fence to Fence: 77′ / 23.51 m
EWZ 1: 26′ / 7.89 m
EWZ 2: 26′ / 7.89 m
EWZ 1 & 2: 65′ / 19.98 m
Height: 12′ / 3.7 m
PART TOLERANCES
Infeed beams and sections must meet these limits:
• Flatness ≤ 2 mm (0.09″)
• Cut straightness ≤ 2 mm (0.09″)
• Cut angle ± 2 mm (0.09″)
• CAD vs. actual (all dimensions) ≤ 4 mm (0.16″) deviation

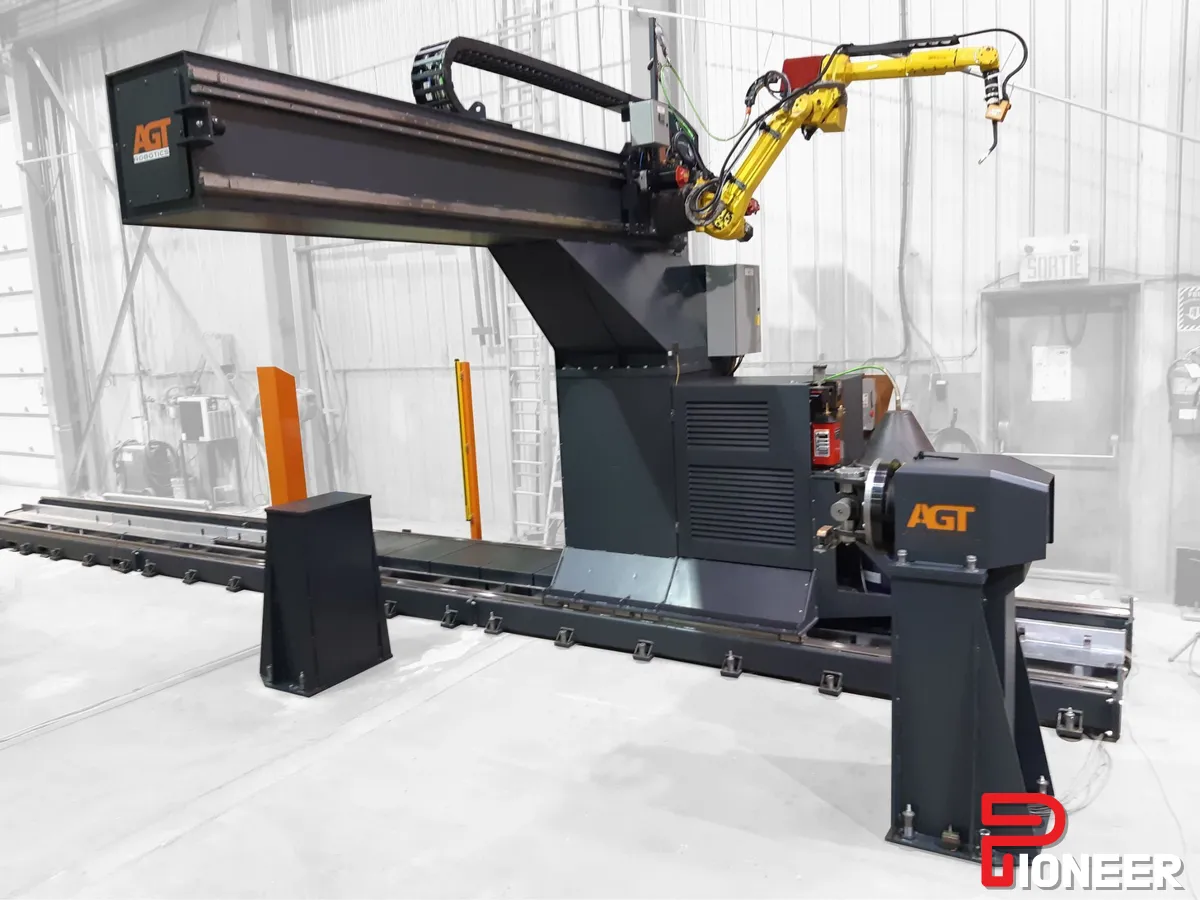

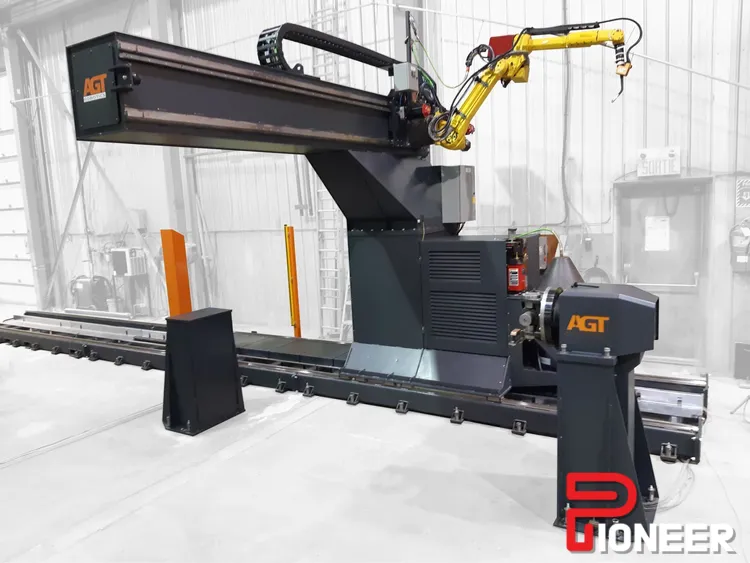

AGT BLOK 400 Robot Cantilevered Gantry
Includes servo-motor driven robot X-axis carriage with:
Servo “Y” axis w ( ) m stroke
Mounting for robot and robot controller
Mounting for Welding Power Source
Mounting for Bulk Wire Barrel
