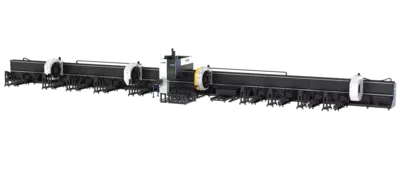

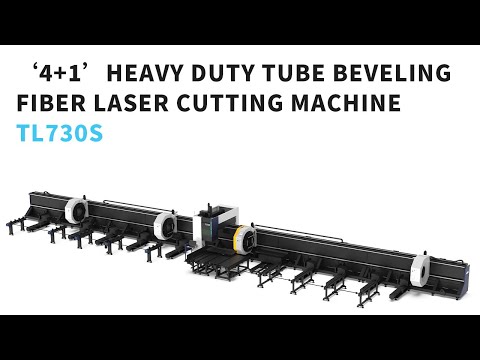

HSG TL730S Flagship ‘4+1’ Full-track Heavy Duty Tube Beveling Fiber Laser Cutting Machine
Have one to sell?
ConditionNew
New
Max Heavy-duty Tube Processing Ability
The machine can process tube diameters in 715mm.
Tube Length：16m
Weight per Tube: 4000kg
Innovate 4+1 Chucks Structure
* C3 chuck and C4 chuck are combined to achieve double support;
* There are 4 points clamping at loading section and the load bearing improved significantly
* Clamping near the cutting area at 2 points which the accuracy is effectively guaranteed.
Intelligent digital chuck
*The chuck and the control system can communicate with each other to achieve full closed-loop control.
*The machine has functions in jaw state detection, tube size measurement and adaptive adjustment of clamping force.
Beveling Processing
Beveling tube cutting head to achieve 0-45°beveling cutting.
Power 12000W-20000W
X/Y-axis Positioning Accuracy ±0.1mm/m
Cutting Capacity of Round Tube Φ120-Φ715mm
Cutting Capacity of Square Tube 120*120-500*500mm
Weight of Single Tube 4000kg
