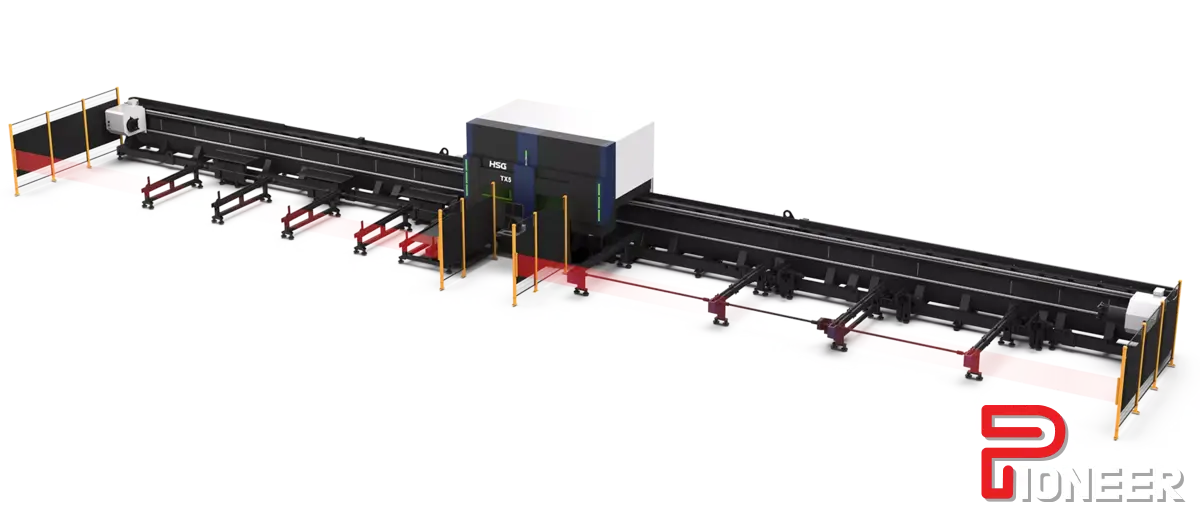

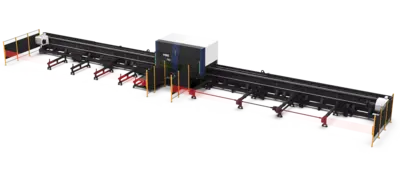

HSG TX5R Heavy-duty Tube Fiber Laser Cutting Machine
Have one to sell?
ConditionNew
New
Lateral Hanging Machine Bed
The lateral hanging bed structure reduces the difficulty of manual operation by lowering the height of the center of gravity, improving safety and making it easier for tube loading.
Independent servo follow-up support
Providing sufficient support during the tube cutting process to improve cutting accuracy.
Follow-up Supporting Plate as Unloading Device
Providing support for tube dropping, with high compatibility with tubes, suitable for various sizes, specifications, and types of tubes.
Beveling Processing
Beveling tube cutting head(optional) to achieve 0-45°beveling cutting.
HSG-X10000 Bus System
The system has high integration, covering multiple commonly used operations and rich auxiliary functions for tube processing applications, with simple and convenient operation.
Capable of Processing Heavy Tubes and Profiles
The weight of the single tube is ≤ 2000kg, the diameter range of the round tube is 50-510mm, and the length of the tube can reach 12000mm; It can also support cutting profiles such as angle steel, angle steel, and I-beams.
Power 6000W-20000W
Cutting Capacity of Round Tube Φ50-Φ510mm
Cutting Capacity of Square Tube 50*50-500*500mm
Chuck Speed 40r/min
Max. Linkage Speed 60m/min
Acceleration 0.3G
Max. Loading Capacity(Single) 2000kg
Optional Beveling Cutting ✔
Control System HSG-X10000 Bus System
